Spryte™
Spec Sheet

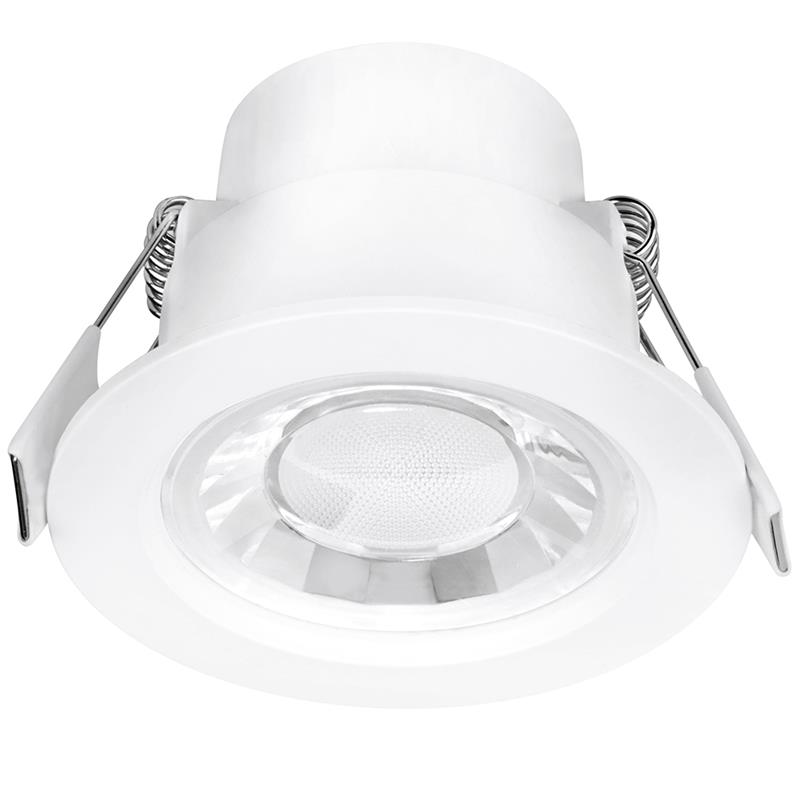

Spryte™ 8W Fixed Integrated IP44 Dimmable LED Downlight



Spryte™ LED downlight range is the ideal energy efficient non-fire rated solution for new build or retrofit halogen reflector lamp installations. Fitted with the edge-to-edge, multifaceted, 60° wide beam EnFiniti™ lens, these downlights allow for high light output and low glare while still providing a sparkling halogen like optical appearance in a compact sized fitting. Now also available in 8W gimbal adjustable version alongside the fixed for maximum application flexibility.

SKU Code Wattage Lumens Colour Temperature Dimmable
EN-DDL10160AK/30 8 620 3000 Yes
EN-DDL10160AK/40 8 680 4000 Yes
Features & Benefits
Energy efficient LED downlight for new build or halogen and reflector lamp retrofit applications
ThermoTec™ technology utilises a combination of highly efficient LED light source, aluminium heat sinking and thermoplastic material for longer life and consistent performance
EnFiniti™ edge-to-edge multifaceted polycarbonate lens creates low glare and halogen like appearance
Compact integrated driver for easy installation and low ceiling voids
8W supplied with fixed white bezel. 10W supplied with interchangeable round & square white bezels
Ideal for residential applications such as corridors, bedrooms, dining rooms, lounge areas and zone 2 of bathrooms
Pre-wired with 1.2m flex and 2-pin plug
1.5kV surge protection
3 year warranty
Read More
Technical Information
Lifetime (Hours)
25000
Power Factor
0.5
IP Rating
IP44
Overall Diameter (mm)
78
Height (mm)
53
Recess Depth (mm)
60
Cutout Diameter Min. (mm)
60
Cutout Diameter Max. (mm)
60



Enfiniti™ lenses have been designed to stretch right to the sides of the front of the lamp to fill out 100% of the aperture, helping to punch out maximum light. They are also perfect if you prefer the look of halogen lamps, with the dichroic-like appearance
