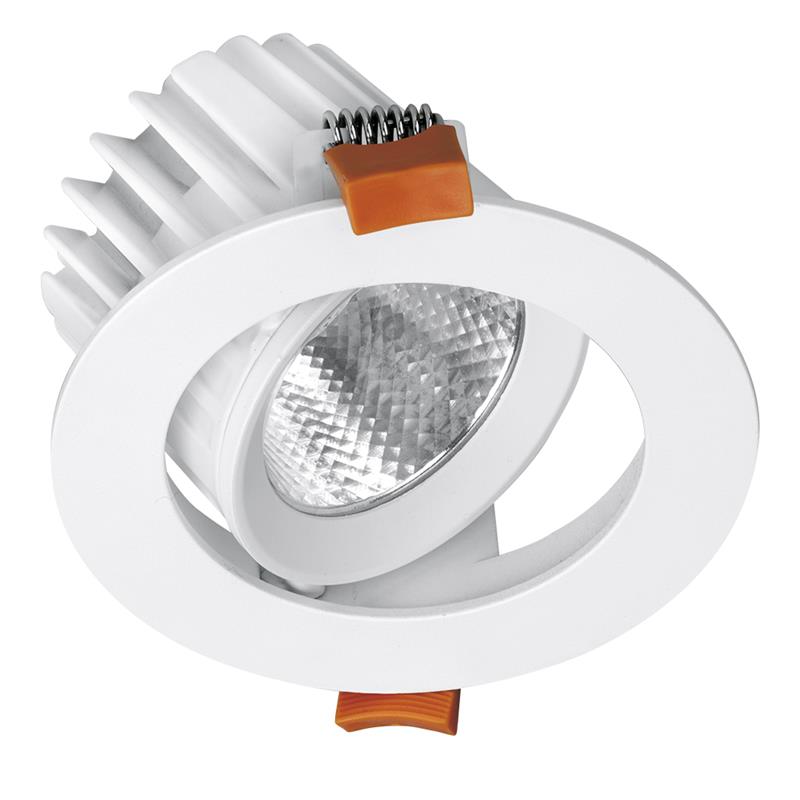

E-Stara™ 10W Adjustable Dimmable Downlight

The E-Stara™ dimmable LED downlight is an energy efficient 10W adjustable downlight. Incorporating the latest in high output COB LED technology this downlight delivers up to 1000 lumens.

Spec Sheet


  • Energy efficient dimmable LED downlight delivering up to 100lm/W
  • Lamp can be adjusted 0-25°
  • Ideal luminaire for general lighting applications in offices, supermarkets, shops, and hotels It is also widely used for public areas, such as stairways, lobbies, reception areas and corridors
  • Supplied with remote driver
  • Pre-wired with 1.2m flex and 2-pin plug
  • 1.5kV surge protection
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra
EN-DDL100AK/30 10 920 3000 80
EN-DDL100AK/40 10 1000 4000 80

Input Voltage (Min)
200
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP20
Cutout Diameter Min. (mm)
90
Cutout Diameter Max. (mm)
95
Recess Depth (mm)
85
Height (mm)
59
Lifetime (Hours)
40000
Dimmable
Yes
Positional Adjustment
Fixed
Overall Diameter (mm)
103
