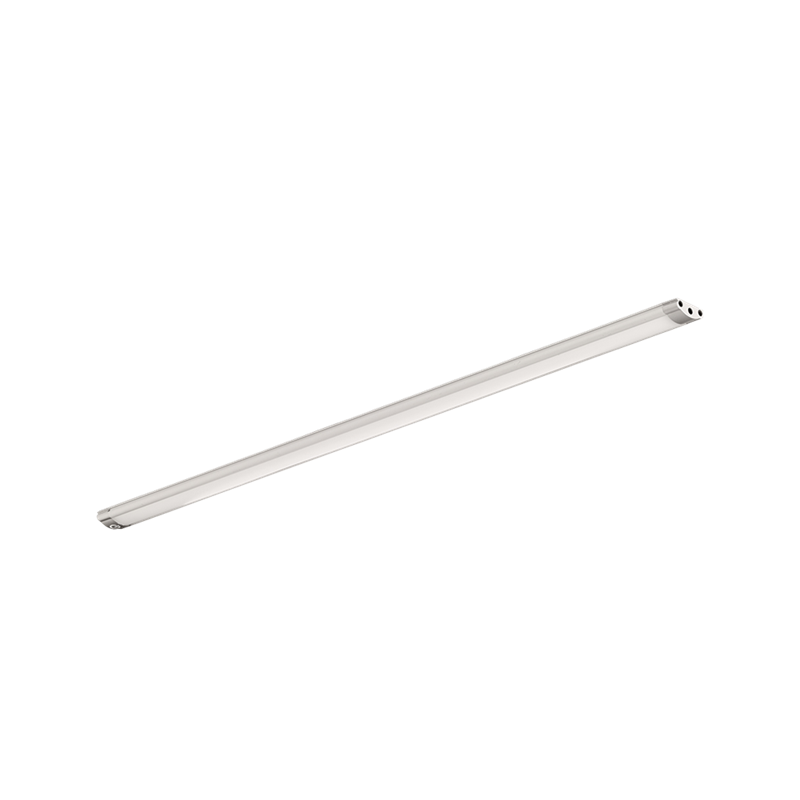

Blade™ 10.5W 1000mm Undercabinet Light



The slim profile, undercabinet light bar Blade™ can be adapted to suit the application. With multiple configurations, lengths can be connected using the link leads or the connectors making it ideal for use in kitchens, display cabinets and wardrobes. LED light points are eliminated by the frosted diffuser creating an even light distribution. Easy to install using the plug in power lead and a 12V LED driver.

SKU Code Wattage Lumens Colour Temperature
EN-CL105T/30 10.5 590 3000
EN-CL105T/40 10.5 640 4000
SKU Code Description
EN-CLA1 Blade™ Connector Bar
EN-CLA2 Blade™ Corner Connector Bar
EN-CLA3 Blade™ 155mm Interconnection lead
EN-CLA4 Blade™ 500mm Interconnection lead
EN-CLP1 Blade™ 2m Mains Lead Without Plug
SKU Code Description
EN-CLPIR Blade™ PIR Sensor
SKU Code Description Fittings Per Driver
AU-LED16T 16W Non-Dimmable 12V Constant Voltage Driver 1 Fitting Per Driver
AU-LED2512CV 25W Non-Dimmable 12V Constant Voltage Driver 2 Fittings Per Driver
AU-LED5012CV 50W Non-Dimmable 12V Constant Voltage Driver 3 Fittings Per Driver
Downloads
Features & Benefits
Benefit from longer life and higher energy savings compared to traditional T4 & T5 fluorescent fittings
Suitable for mounting under, in or above kitchen cabinets, shelves, display cabinets, bookcases etc
Power and interconnection leads supplied separately for added customisation
Fittings can be used on their own, connected end to end, connected with the corner bar or using interconnection leads (maximum run of 2 metres)
Plug and play PIR sensor available as an accessory
PIR detection distance up to 1m, detection range 60°. Time lag can be adjusted to 1 minute or 5 minutes, distance and sensitivity can also be adjusted.
On/off touch switch allows independent control of interconnected fittings
Supplied with mounting clips
Requires 12V LED driver (sold separately)
3 year warranty
Read More
Technical Information
Lifetime (Hours)
30000
IP Rating
IP20
Length (mm)
1000
Width (mm)
25
Height (mm)
9
DALI
No
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • Class 3 Equipment
    Class 3 Equipment
  • CE
    CE
  • SAA
    SAA
