UtiliteX™
Spec Sheet

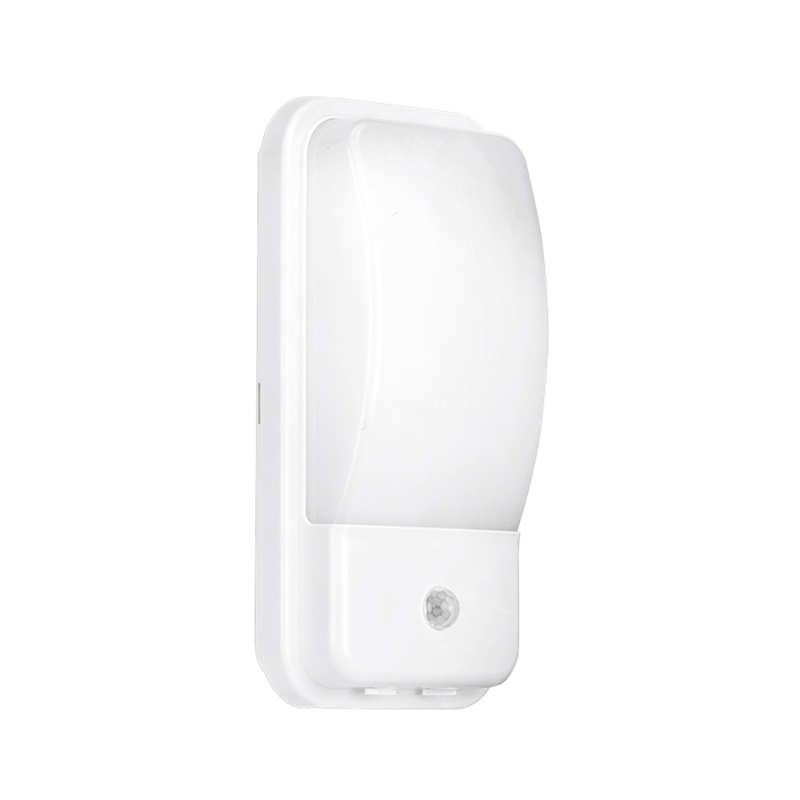

UtiliteX™ 10W PIR IP65 LED Security Bulkhead



The new look UtiliteX™ security bulkhead is compact yet tough. Now producing up to 880 lumens, they are also available with lux detecting PIR sensor. IP65 rated as standard and constructed from impact resistant polycarbonate. Available in both black and white.

SKU Code Wattage Lumens Colour Temperature Dimmable
EN-BH10PIRBLK/40 10 880 4000 No
EN-BH10PIRW/40 10 880 4000 No
Features & Benefits
IP65 rated security bulkhead constructed from impact resistant polycarbonate
Opal diffuser for low glare and uniform light distribution
PIR sensor 120° detection beam range up to 5m
Adjustable light detector from 0 to 350 lux
Adjustable hold time 10 seconds to 3 minutes
1.5kV surge protection
3 year warranty
Read More
Technical Information
Lifetime (Hours)
25000
Power Factor
0.5
IP Rating
IP65
Length (mm)
300
Width (mm)
150
  • CE
    CE
  • IK08
    IK08
  • RoHS
    RoHS
  • SAA
    SAA
  • Non-Replaceable LED
    Non-Replaceable LED
  • Class 2 Equipment
    Class 2 Equipment
  • IP44
    IP44
  • LED Light Source
    LED Light Source
  • 240V
    240V
