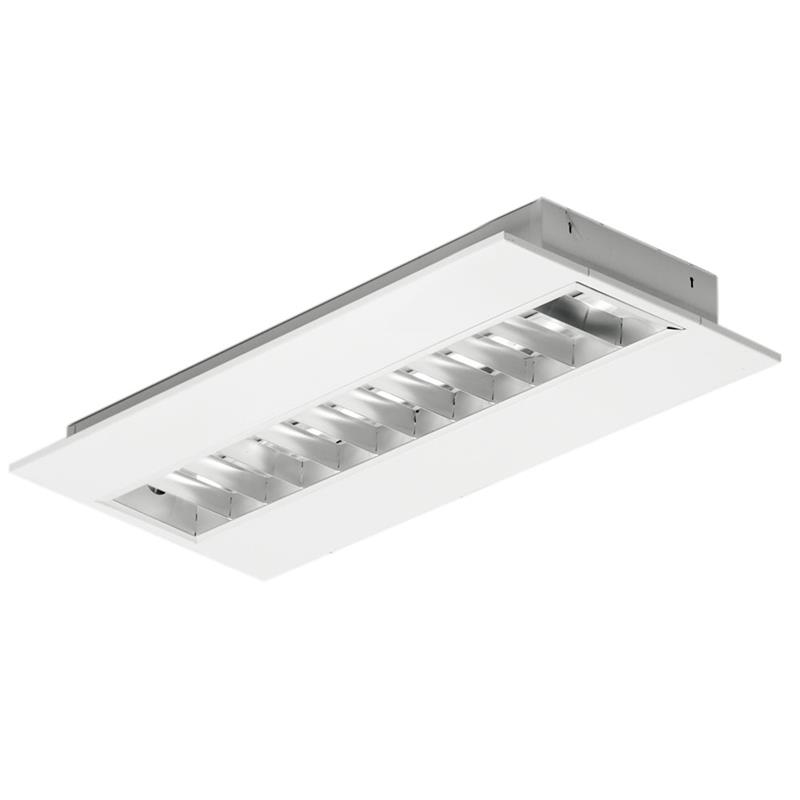

220-240V 15W 600mmx300mm Recessed LED Louvre Troffer

Range of LED luminaires with a double parabolic aluminium louvre system for a Unified Glare Rating (UGR) of <19 which is ideal for office and educational facilities. Available in 600x300mm, 1200x300mm and 1500x300mm to suit different ceiling structures. With a lumen output of up to 3325lm, required illuminance for office and other commercial buildings is confidently achieved. Option for Airflow addition is available; please contact sales office. With SDCM<3, colour consistency across large installations is secured. Supplied with non-dimmable driver as standard. Available in 4000K and a 50,000 lifetime to L70. 5 year warranty.

Spec Sheet


  • Great colour consistency with SDCM of < 3
  • Single aluminum louver, double parabolic
  • Supplied with 1.5 meters flex & plug
  • UGR < 19 ideal for use in offices
  • IP20 for use indoors
  • 5 Year Warranty
SKU Code Wattage Lumens Colour Temp (K) Ra
AU-TFL60AK/40 15 1500 4000 80
AU-TFL60DAK/40 15 1425 4000 80

Width (mm)
295
Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.9
IP Rating
IP20
Recess Depth (mm)
55
Height (mm)
55
Length (mm)
595
Lifetime (Hours)
50000
Dimmable
No
Positional Adjustment
Fixed
