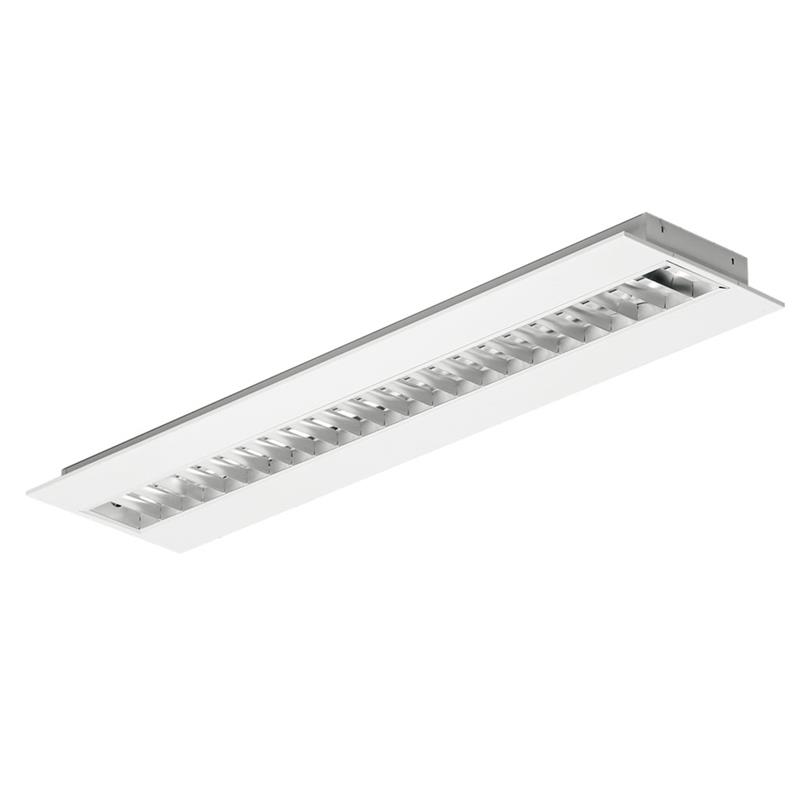

220-240V 30W 1200x300mm LED Louvre Troffer



Range of LED luminaires with a double parabolic aluminium louvre system for a Unified Glare Rating (UGR) of <19 which is ideal for office and educational facilities. Available in 600x300mm, 1200x300mm and 1500x300mm to suit different ceiling structures. With a lumen output of up to 3325lm, required illuminance for office and other commercial buildings is confidently achieved. Option for Airflow addition is available; please contact sales office. With SDCM<3, colour consistency across large installations is secured. Supplied with non-dimmable driver as standard. Available in 4000K and a 50,000 lifetime to L70. 5 year warranty.

SKU Code Wattage Lumens Colour Temperature Dimmable
AU-TFL1230AK/40 30 3000 4000
AU-TFL1230DAK/40 30 3000 4000 Yes
Downloads
All IES/LDT Files
AU-TFL1230AK/40
Features & Benefits
Great colour consistency with SDCM of < 3
Single aluminum louver, double parabolic
Supplied with 1.5 meters flex & plug
UGR < 19 ideal for use in offices
IP20 for use indoors
5 Year Warranty
Read More
Technical Information
Lifetime (Hours)
50000
Power Factor
0.95
IP Rating
IP20
Length (mm)
1195
Width (mm)
295
Height (mm)
55
