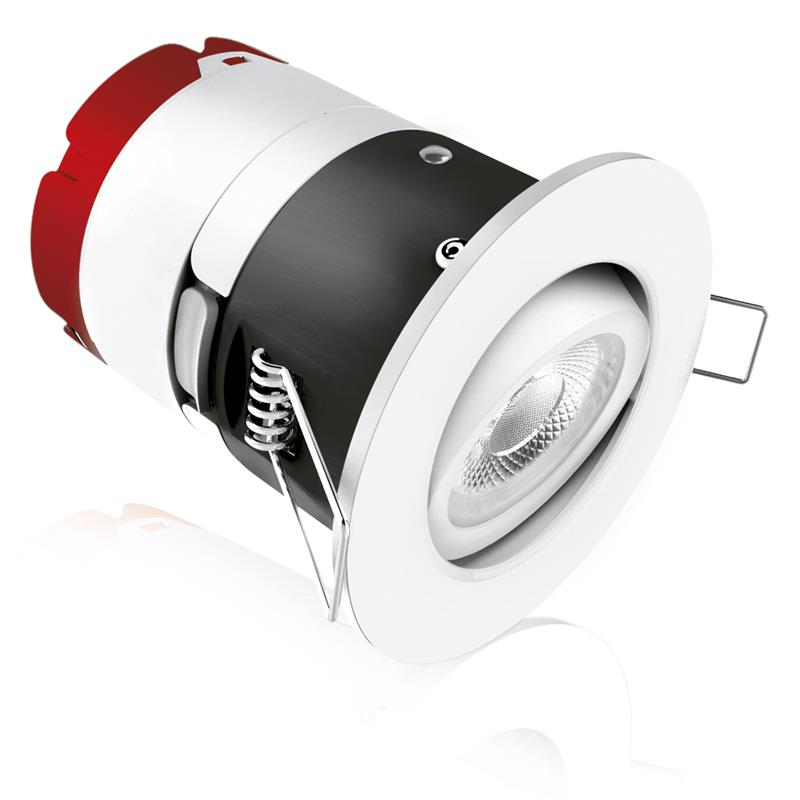

mPro™ Adjustable IP65 Dimmable Fire Rated Downlight



Adjustable, integrated, fire rated 7W LED downlight with driver-on-board. Convertible design to fit ceiling voids as shallow as 47mm. Available in 3000K and 4000K. Interchangeable bezels available in white, matt white, polished chrome and satin nickel. Rated to 30,60 and 90 minute fire ceilings. Complies with BS EN 1365-2: 2014 (fire resistance), BS EN ISO 10140-2: 2010 & BS EN ISO 10140-3: 2010 + A1: 2015 (acoustics), BS EN 13141-1:2004 (Air leakage).

SKU Code Wattage Lumens Colour Temperature
AU-MPRO4AKMW/30 7 630 3000
AU-MPRO4AKMW/40 7 660 4000
AU-MPRO4AKPC/30 7 630 3000
AU-MPRO4AKPC/40 7 660 4000
AU-MPRO4AKSN/30 7 630 3000
AU-MPRO4AKSN/40 7 660 4000
AU-MPRO4AKW/30 7 630 3000
AU-MPRO4AKW/40 7 660 4000
Features & Benefits
Rated to 30, 60 & 90 minute fire ceilings
Patented LEDchroic™ lens provides halogen appearance with LED efficiency, anti-glare and precise beam control
60° lens supplied, interchangeable 40° lens - sold separately
FastRFix™ rapid install system connector included
IC cap included
ErP compliant - High colour rendering index (Ra) >80
Separate emergency pack available - AU-FRLM10EM
BS EN 1365-2: 2014 (Fire resistance)
BS EN ISO 10140-2: 2010 & BS EN ISO 10140-3: 2010 + A1: 2015 (Acoustics)
BS EN 13141-1:2004 (Air leakage)
(L70) at a 40,000 hour lifetime
5 Year Warranty – see auroralighting.com for details
Read More
Technical Information
Lifetime (Hours)
40000
Power Factor
0.85
IP Rating
IP65
Overall Diameter (mm)
98
Length (mm)
103
Height (mm)
103
Recess Depth (mm)
100
Cutout Diameter Min. (mm)
85
Cutout Diameter Max. (mm)
85
  • ErP Compliant
    ErP Compliant
  • CE
    CE
  • 240V
    240V
  • IP20
    IP20
  • Dimmable
    Dimmable
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • LED Light Source
    LED Light Source



A versatile lock and release electrical connector allowing for easier installation with a screwless cover and cable clamp allowing for quicker installation with large terminals for the ease of wiring
LEDchroic™ anti-glare lens technology accurately simulates the light output from traditional dichroic reflector. Aesthetically, it looks exactly like a dichroic halogen when on or off
