A versatile lock and release electrical connector allowing for easier installation with a screwless cover and cable clamp allowing for quicker installation with large terminals for the ease of wiring
mPro™
Spec Sheet

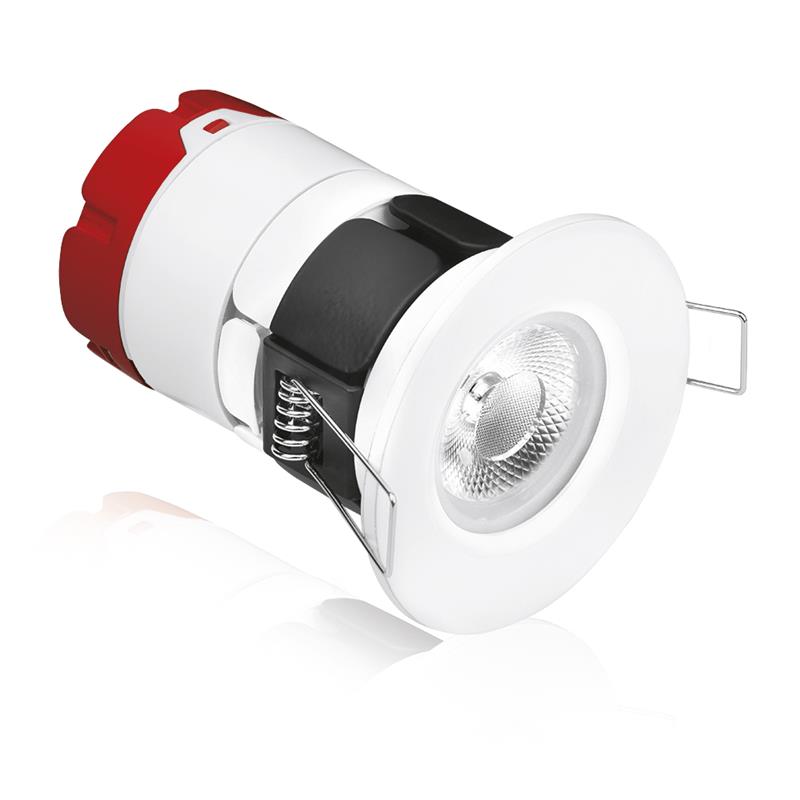

mPro™ Fixed IP65 Dimmable Fire Rated Downlight
Integrated, fire rated 7W LED downlight with driver-on-board. Convertible design to fit ceiling voids as shallow as 47mm. Available in 3000K and 4000K. Interchangeable bezels available in white, matt white, polished chrome and satin nickel. Multiple lens options: 40° and 60°. Rated to 30,60 and 90 minute fire ceilings. Complies with BS EN 1365-2:2014 (fire resistance), BS EN ISO 10140-2:2010 & BS EN ISO 10140-3:2010 + A1: 2015 (acoustics), BS EN 13141-1:2004 (Air leakage).
| SKU Code | Wattage | Lumens | Colour Temperature |
|---|---|---|---|
| AU-MPRO3AK/30 | 7 | 600 | 3000 |
| AU-MPRO3AK/40 | 7 | 640 | 4000 |
Downloads
Features & Benefits
Rated to 30, 60 & 90 minute fire ceilings
Patented LEDchroic™ lens provides halogen appearance with LED efficiency, anti-glare and precise beam control
60° lens supplied, interchangeable 40° lens - sold separately
FastRFix™ rapid install system connector included
Technical Information
Lifetime (Hours)
40000
Power Factor
0.85
IP Rating
IP65
Overall Diameter (mm)
88
Length (mm)
100
Height (mm)
104
Recess Depth (mm)
100
Cutout Diameter Min. (mm)
65
Cutout Diameter Max. (mm)
72
-
CE -
Class 2 Equipment -
ErP Compliant -
Equipment for Indoor Use -
Dimmable -
Nemko -
IP65 -
LED Light Source
LEDchroic™ anti-glare lens technology accurately simulates the light output from traditional dichroic reflector. Aesthetically, it looks exactly like a dichroic halogen when on or off
