VersiTile™
Spec Sheet

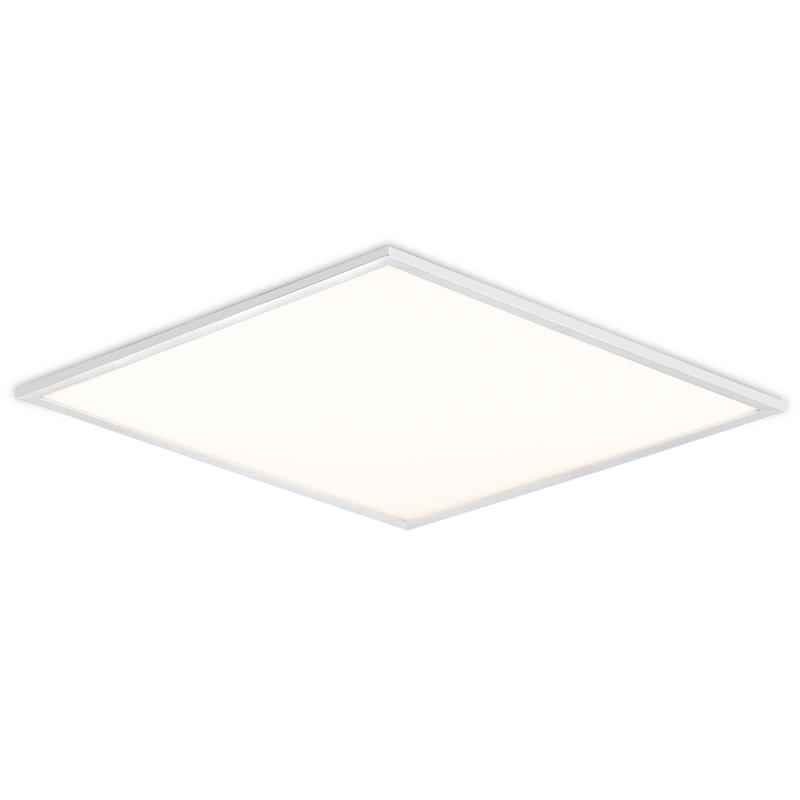

Versitile™ 38W 500 x 500mm IP65 Non-Dimmable Panel



Highly efficient award winning edge-lit non-dimmable LED light panel. Fitted with high transmission diffuser for minimal glare. Lightweight slim aluminium frame in RAL9016 White finish. IP rating of IP65 from front and back (Driver and connections IP20). Suitable for installations in 15 and 24mm T-bar ceilings. May also be surface mounted or suspended. Fitted with a connector to easily connect the light panel and the driver. Supplied with remote LED driver. 5 year warranty.

SKU Code Wattage Lumens Colour Temperature
AU-LP200CAK/30 38 3600 3000
AU-LP200CAK/30D 38 3600 3000
AU-LP200CAK/30DEM 38 3600 3000
AU-LP200CAK/30EM 38 3600 3000
AU-LP200CAK/40 38 3900 4000
AU-LP200CAK/40D 38 3900 4000
AU-LP200CAK/40DEM 38 3900 4000
AU-LP200CAK/40EM 38 3900 4000
Features & Benefits
Edge lit design provides superior light performance and uniformity ideal for offices and commercial lighting
High transmission diffuser drastically reduces uncomfortable glare
Heatsink rapidly dissipates heat through rear of fitting
Dimmable and CX colour exchange version available to set the desired light environment
IP65 front and back – suitable for use in commercial kitchens, health care and similar environments
Suitable for installation in 15 & 24mm T-bar ceilings
Panel frame RAL9016 White
High colour rendering index (Ra) 80
SDCM <4 providing consistent light colour quality
DALI and Emergency options available
(L70) at a 50,000 hour lifetime
5 Year Warranty - see www.auroralighting.com for details
Read More
Technical Information
Lifetime (Hours)
50000
Power Factor
0.9
IP Rating
IP65
Length (mm)
498
Width (mm)
498
Height (mm)
9.5
Recess Depth (mm)
9.5
  • CE
    CE
  • Non-Replaceable LED
    Non-Replaceable LED
  • RoHS
    RoHS
  • Class 2 Equipment
    Class 2 Equipment
  • ErP Compliant
    ErP Compliant
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • Nemko
    Nemko
  • IP65
    IP65
  • LED Light Source
    LED Light Source
  • 240V
    240V
