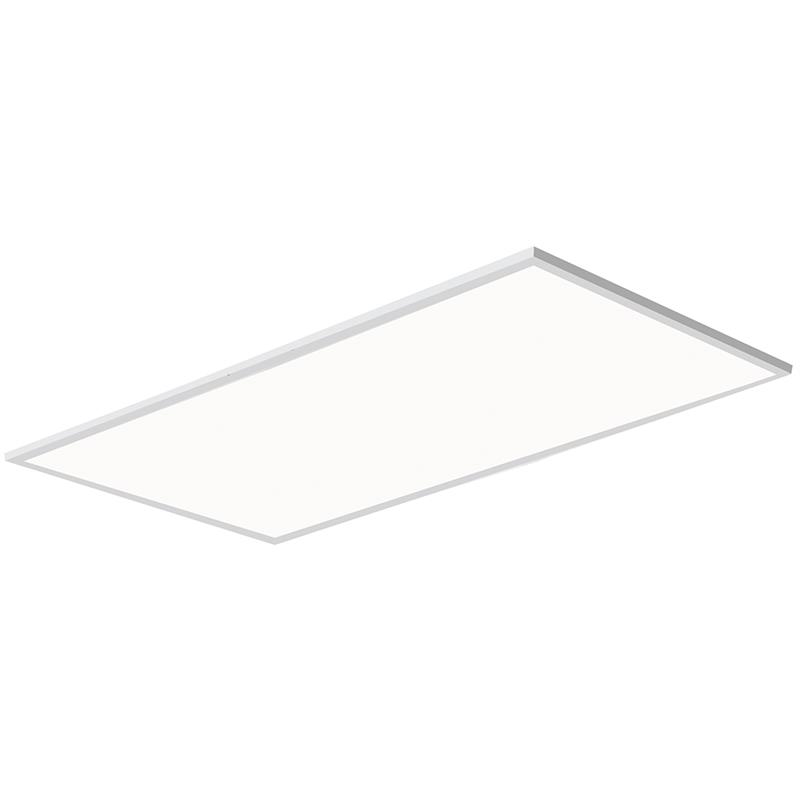

Versitile™ 60W 1200 x 600mm IP65 Dimmable Panel

Highly efficient award winning edge-lit dimmable LED light panels. Fitted with high transmission diffuser for minimal glare. Lightweight slim aluminium frame in RAL9016 White finish. IP rating of IP65 from front (Driver and connections IP20). Suitable for installations in 15 and 24mm T-bar ceilings. May also be surface mounted or suspended. Fitted with a connector to easily connect the light panel and the driver. Supplied with remote LED driver. 5 year warranty.

Spec Sheet


  • Edge lit design provides superior lighting performance and uniform light output across the surface
  • High transmission diffuser drastically reduces uncomfortable glare which can cause eye strain in well-lit offices
  • Dimmable and CX colour exchange version available to set the desired light environment
  • UGR (unified glare rating) - 19 - perfect for use in offices
  • Heatsink design dissipates unwanted heat through rear of fitting, drastically reducing heat emitted through front and r for air conditioning
  • 110-265V voltage range suitable for worldwide installation
  • Dimmable (1-10V) and CX options also available
  • IP65 front and back – suitable for use in commercial kitchens, health care and similar environments
  • Up to x3 longer life than triphosphor fluorescent
  • Suitable for installation in 15 & 24mm T-bar ceilings
  • May also be surface mounted or suspended
  • Panel frame RAL9016 White
  • High colour rendering index (Ra) 80 – ErP Compliant
  • DALI options available, please call sales office for details
  • (L70) at a 50,000 hour lifetime
  • 5 Year Warranty - see www.auroralighting.com for details
SKU Code Wattage Lumens Colour Temp (K) Ra
AU-LP105CAK/30 60 5300 3000 80
AU-LP105CAK/30EM 60 5300 3000 80
AU-LP105CAK/40 60 5500 4000 80
AU-LP105CAK/40EM 60 5500 4000 80

Width (mm)
595
DALI
Yes
Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP65
Recess Depth (mm)
9.5
Height (mm)
9.5
Length (mm)
1195
Lifetime (Hours)
50000
Dimmable
Yes
