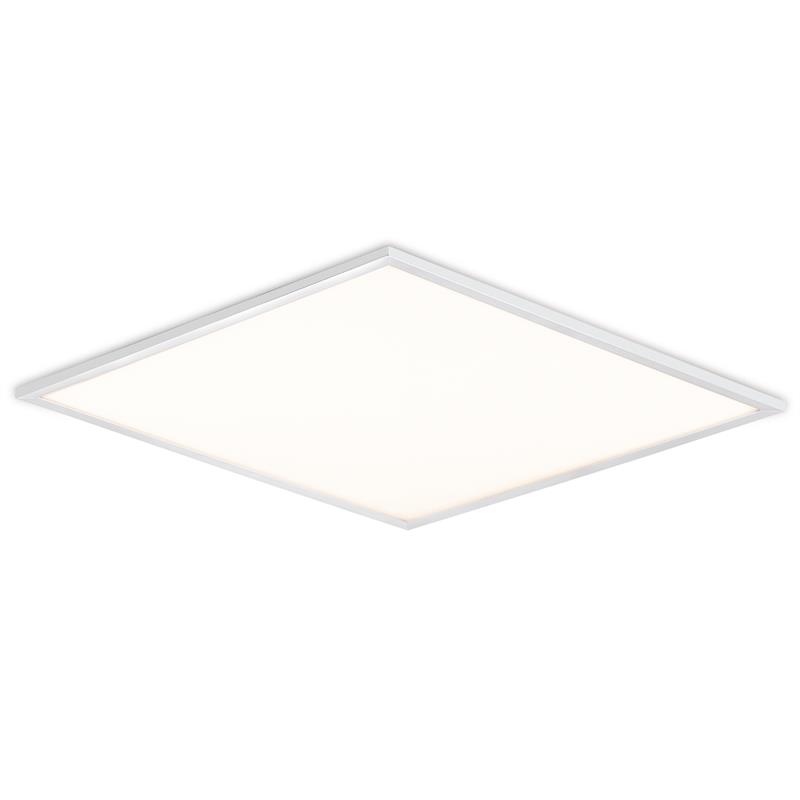

Versitile™ 38W 600 x 600mm IP65 Non-Dimmable Panel

Highly efficient award winning edge-lit non-dimmable LED light panel. Fitted with high transmission diffuser for minimal glare. Lightweight slim aluminium frame in RAL9016 White finish. IP rating of IP65 from front (Driver and connections IP20). Suitable for installations in 15 and 24mm T-bar ceilings. May also be surface mounted or suspended. Fitted with a connector to easily connect the light panel and the driver. Supplied with remote LED driver. 5 year warranty.

Spec Sheet


  • Edge lit design provides superior light performance and uniformity ideal for offices and commercial lighting
  • High transmission diffuser drastically reduces uncomfortable glare
  • Heatsink rapidly dissipates heat through rear of fitting
  • Dimmable and CX colour exchange version available to set the desired light environment
  • IP65 front and back – suitable for use in commercial kitchens, health care and similar environments
  • Suitable for installation in 15 & 24mm T-bar ceilings
  • Panel frame RAL9016 White
  • High colour rendering index (Ra) 80
  • SDCM <4 providing consistent light colour quality
  • DALI and Emergency options available
  • (L70) at a 50,000 hour lifetime
  • 5 Year Warranty - see www.auroralighting.com for details
SKU Code Wattage Lumens Colour Temp (K) Ra
AU-LP100CAK/30 38 3600 3000 80
AU-LP100CAK/30D 38 3600 3000 80
AU-LP100CAK/30DEM 38 3600 3000 80
AU-LP100CAK/30EM 38 3600 3000 80
AU-LP100CAK/40 38 3900 4000 80
AU-LP100CAK/40D 38 3900 4000 80
AU-LP100CAK/40DEM 38 3900 4000 80
AU-LP100CAK/40EM 38 3900 4000 80

Width (mm)
595
Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP65
Height (mm)
9.5
Length (mm)
595
Lifetime (Hours)
50000
Dimmable
No
Positional Adjustment
Fixed
