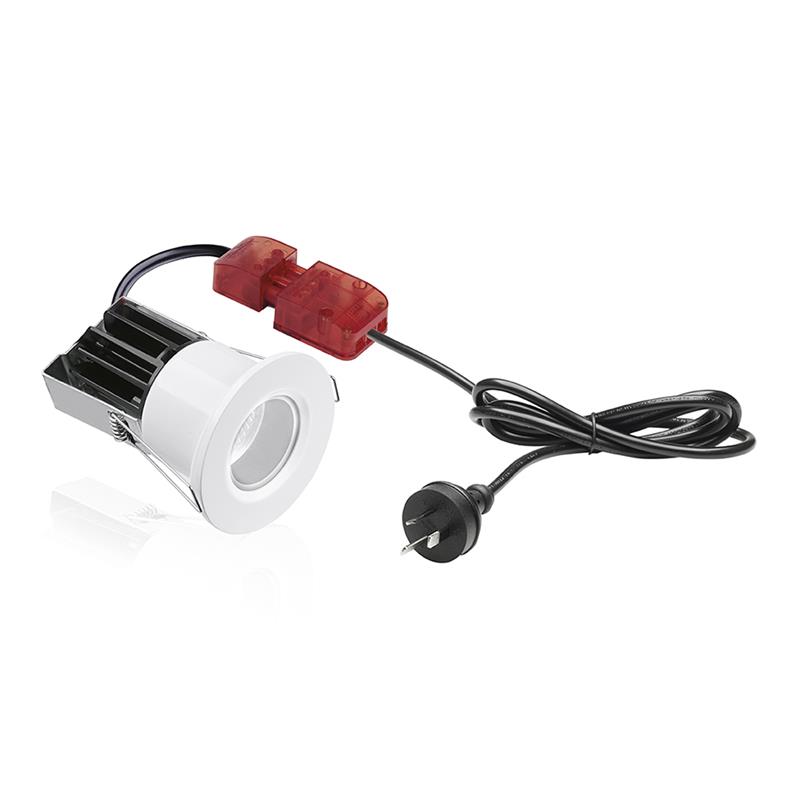

m10™ 10W IP65 Baffle Dimmable Fire Rated Downlight

Spec Sheet


  • 5 year warranty – see auroralighting.com for details
  • United Kingdom Patent Application No. 1405622.0
  • icDOB™ (Driver on Board) for maximum reliability and lifetime - NO SEPARATE DRIVER REQUIRED
  • Crystalcool™ next generation thermal management offers brighter light for longer
  • Mains voltage single source HVLED™ chip eliminates overshadowing and offers controlled dimming
  • Patented LEDchroic™ lens provides halogen appearance with LED efficiency, anti-glare and precise beam control
  • 40° lens supplied, interchangeable 24° & 60° lenses sold separately
  • FastFix™ rapid install system with 1.5m flex and plug fitted
  • Twist&Lock™ IP65 Interchangeable white bezel included
  • BS EN 1365-2:2000 (Fire resistance)
  • BS EN ISO 140-3:1995 & BS EN ISO 140-6:1998 (Acoustics)
  • BS EN 13141-1:2004 (Air leakage)
  • BS EN 13141-1:2004 (Air leakage)
  • 5 year warranty – see auroralighting.com for details

Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP65
Cutout Diameter Min. (mm)
65
Cutout Diameter Max. (mm)
72
Recess Depth (mm)
105
Height (mm)
105
Lifetime (Hours)
40000
Dimmable
Yes
Positional Adjustment
Baffle
Overall Diameter (mm)
88
