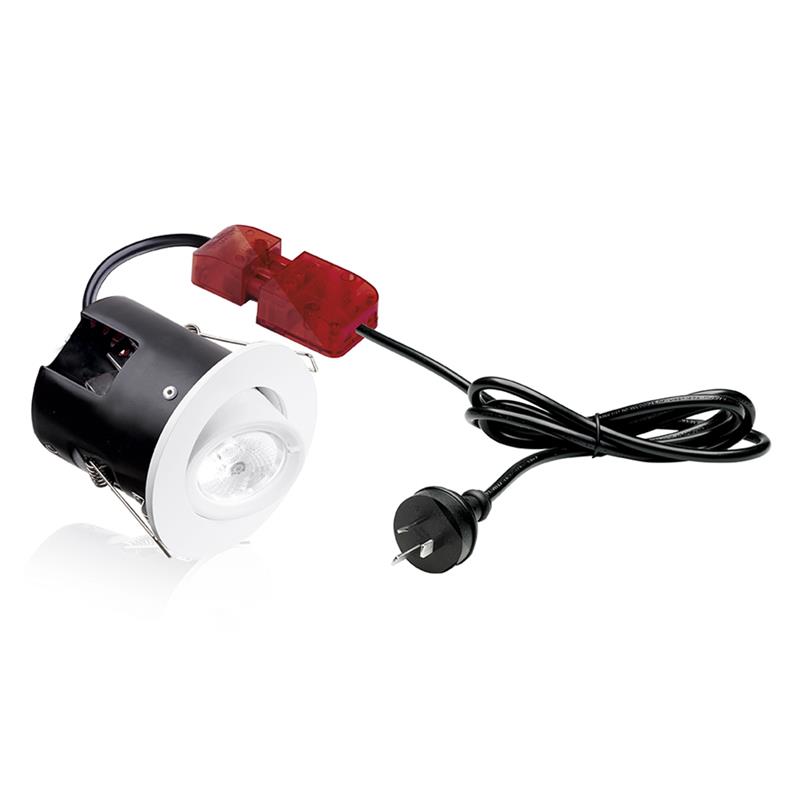

m10™ 10W Adjustable Dimmable Fire Rated Downlight

Adjustable, integrated, fire rated 10W LED downlight with driver-on-board and high voltage, single source LED chip. Fitted with CrystalCool™ thermal management.

Spec Sheet


  • Rated to 30, 60 & 90 minute fire ceilings
  • United Kingdom Patent Application No. 1405622.0
  • icDOB™ (Driver on Board) for maximum reliability and lifetime - NO SEPARATE DRIVER REQUIRED
  • Crystalcool™ next generation thermal management offers brighter light for longer
  • Mains voltage single source HVLED™ chip eliminates overshadowing and offers controlled dimming
  • Patented LEDchroic™ lens provides halogen appearance with LED efficiency, anti-glare and precise beam control
  • 40° lens supplied (not interchangeable)
  • FastFix™ rapid install system with 1.5m flex and plug fitted
  • Twist&Lock™ IP65 Interchangeable white bezel included
  • BS EN 1365-2:2000 (Fire resistance)
  • BS EN ISO 140-3:1995 & BS EN ISO 140-6:1998 (Acoustics)
  • BS EN 13141-1:2004 (Air leakage)
  • (L70) at a 40,000 hour lifetime
  • 5 year warranty – see auroralighting.com for details

Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP20
Cutout Diameter Min. (mm)
85
Cutout Diameter Max. (mm)
85
Recess Depth (mm)
110
Height (mm)
111
Lifetime (Hours)
40000
Dimmable
Yes
Positional Adjustment
Adjustable
Overall Diameter (mm)
98
