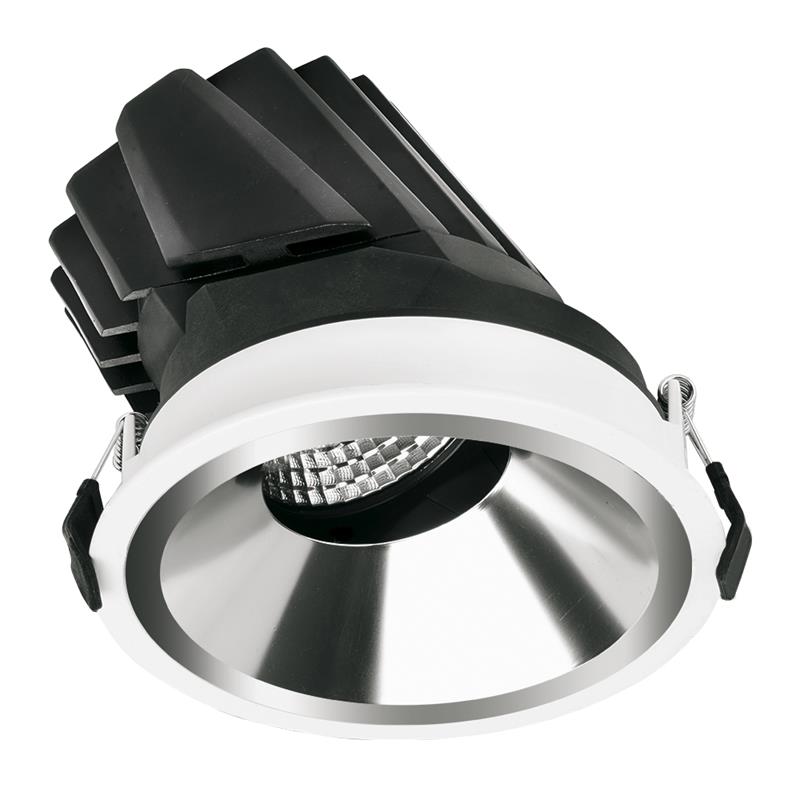

Ecylps 35W Adjustable Downlight

Part of the Eclyps range, the 35W Adjustable COB Downlights are ideal to set accents within an installation such as the illumination of wall paintings along corridors or in meeting rooms. With a lumen package of 1892lm, the adjustable head creates an ideal wall wash effect. Spaces are further enhanced by applying Eclyps accessories such as Mirror, Black or Matt Silver baffles, Honeycomb attachments or colour filters. Supplied with CRI80 as standard and SDCM<3, clients can also opt for CRI90 options to further enhance colour quality of the installation. Beam angles include 15°, 24° and 36°. L70 is 50,000 hrs. 5 year warranty.

Spec Sheet


  • Non Dimmable
  • CRI 80 (Selected CRI 90 options available)
  • Up to 89lm/W
  • Beam angles available in 36°, 60° with 15° & 24° to special order
  • Baffle/Filter/Reflector accessories available
  • SDCM < 3
  • 5 Year Warranty
SKU Code Wattage Lumens Colour Temp (K) Ra
AU-EC35A1DTAK/30 35 1892 3000 80
AU-EC35A1DTAK/40 35 1892 4000 80
AU-EC35A1EMNDAK/30 35 1892 3000 80
AU-EC35A1EMNDAK/40 35 1892 4000 80
AU-EC35A1NDAK/30 35 1892 3000 80
AU-EC35A1NDAK/40 35 1892 4000 80
AU-EC35A2DTAK/30 35 1892 3000 80
AU-EC35A2DTAK/40 35 1892 4000 80
AU-EC35A2EMNDAK/30 35 1892 3000 80
AU-EC35A2EMNDAK/40 35 1892 4000 80
AU-EC35A2NDAK/30 35 1892 3000 80
AU-EC35A2NDAK/40 35 1892 4000 80
AU-EC35A3DTAK/30 35 1892 3000 80
AU-EC35A3DTAK/40 35 1892 4000 80
AU-EC35A3EMNDAK/30 35 1892 3000 80
AU-EC35A3EMNDAK/40 35 1892 4000 80
AU-EC35A3NDAK/30 35 1892 3000 80
AU-EC35A3NDAK/40 35 1892 4000 80

AU-ECHC2435 Eclyps 24W & 35W Honeycomb
Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.95
Input Voltage Type
AC
IP Rating
IP20
Cutout Diameter Min. (mm)
150
Cutout Diameter Max. (mm)
150
Recess Depth (mm)
163
Lifetime (Hours)
50000
Dimmable
No
Positional Adjustment
Adjustable
Overall Diameter (mm)
164
