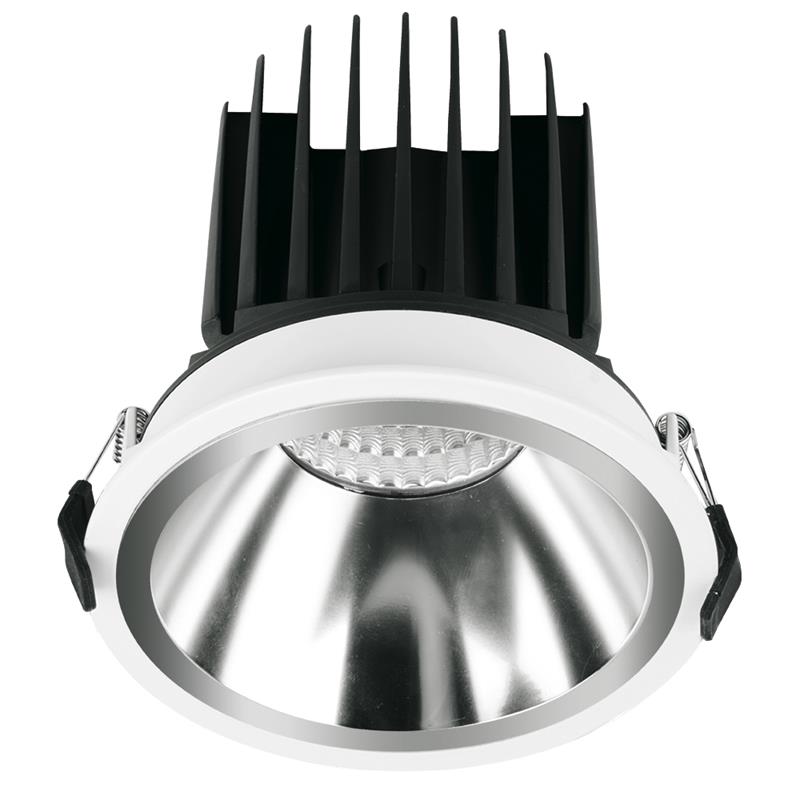

Ecylps 24W Fixed Downlight

Part of the Eclyps range, the 24W Fixed COB LED Downlights are ideal for commercial lighting installations, including circulation and break out areas as well as entrance and atrium spaces. With a lumen package of 2280lm, this range is suitable for different ceiling heights within its application. Spaces are further enhanced by applying Eclyps accessories such as Mirror, Black or Matt Silver baffles, Honeycomb attachments or colour filters. Supplied with CRI80 as standard and SDCM<3, clients can also opt for CRI90 options to further enhance colour quality of the installation. Beam angles include 15°, 24°, 36° and 60°. L70 is 50,000 hrs. 5 year warranty.

Spec Sheet


  • Dimmable with driver
  • CRI 80 (Selected CRI 90 options available)
  • Up to 89lm/W
  • Beam angles available in 36°, 60° with 15° & 24° to special order
  • Baffle/Filter/Reflector accessories available
  • SDCM < 3
  • 5 Year Warranty
SKU Code Wattage Lumens Colour Temp (K) Ra
AU-EC24F1DTAK/30 24 2280 3000 80
AU-EC24F1DTAK/40 24 2280 4000 80
AU-EC24F1EMNDAK/30 24 2280 3000 80
AU-EC24F1EMNDAK/40 24 2280 4000 80
AU-EC24F1NDAK/30 24 2280 3000 80
AU-EC24F1NDAK/40 24 2280 4000 80
AU-EC24F2DTAK/30 24 2280 3000 80
AU-EC24F2DTAK/40 24 2280 4000 80
AU-EC24F2EMNDAK/30 24 2280 3000 80
AU-EC24F2EMNDAK/40 24 2280 4000 80
AU-EC24F2NDAK/30 24 2280 3000 80
AU-EC24F2NDAK/40 24 2280 4000 80
AU-EC24F3DTAK/30 24 2280 3000 80
AU-EC24F3DTAK/40 24 2280 4000 80
AU-EC24F3EMNDAK/30 24 2280 3000 80
AU-EC24F3EMNDAK/40 24 2280 4000 80
AU-EC24F3NDAK/30 24 2280 3000 80
AU-EC24F3NDAK/40 24 2280 4000 80
AU-EC24F6DTAK/30 24 2280 3000 80
AU-EC24F6DTAK/40 24 2280 4000 80
AU-EC24F6EMNDAK/30 24 2280 3000 80
AU-EC24F6EMNDAK/40 24 2280 4000 80
AU-EC24F6NDAK/30 24 2280 3000 80
AU-EC24F6NDAK/40 24 2280 4000 80

AU-ECHC2435 Eclyps 24W & 35W Honeycomb
Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.95
Input Voltage Type
AC
IP Rating
IP20
Cutout Diameter Min. (mm)
150
Cutout Diameter Max. (mm)
150
Recess Depth (mm)
145
Height (mm)
148
Lifetime (Hours)
50000
Dimmable
No
Positional Adjustment
Fixed
Overall Diameter (mm)
164
