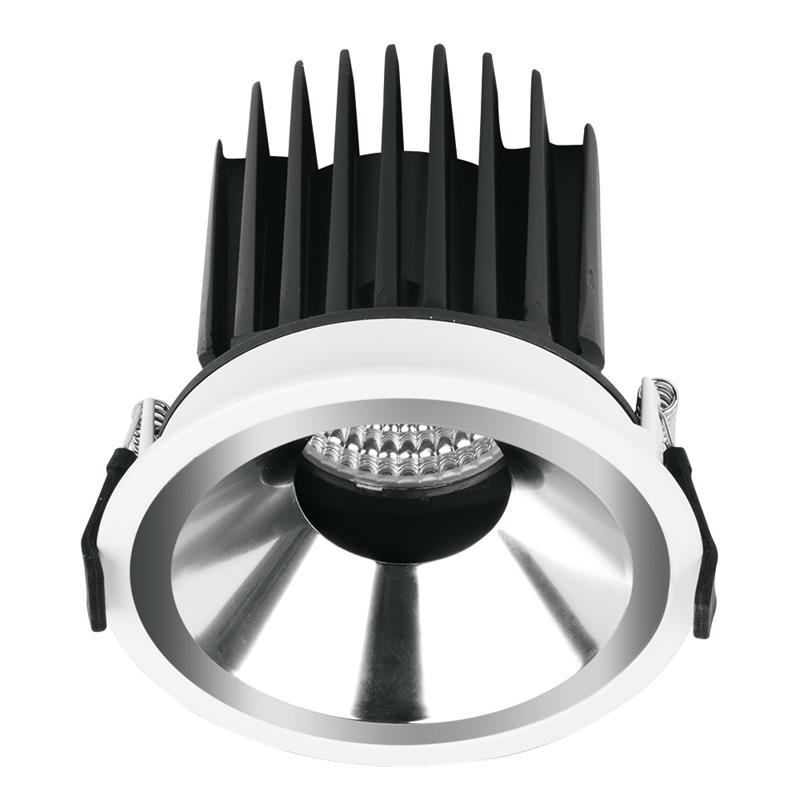

Ecylps 14W Fixed Downlight

Part of the Eclyps range, the 14W Fixed COB LED Downlights are ideal for commercial lighting installations, including circulation and break out areas. With a lumen package of 1280lm, spaces are further enhanced by applying Eclyps accessories such as Mirror, Black or Silver Matt baffles, Honeycomb attachments or colour filters. Supplied with CRI80 as standard and SDCM<3, clients can also opt for CRI90 options to further enhance colour quality of the installation. Beam angles include 15°, 24°, 36° and 60°. L70 is 50,000 hrs. 5 year warranty.

Spec Sheet


  • Non Dimmable
  • CRI 80 (Selected CRI 90 options available)
  • SDCM < 3
  • Beam angles available in 36°, 60° with 15° & 24° to special order
  • Baffle/Filter/Reflector accessories available
  • Ideal for Commercial and Hospitality
  • 5 Year Warranty
SKU Code Wattage Lumens Colour Temp (K) Ra
AU-EC14F1DTAK/30 14 1280 3000 80
AU-EC14F1DTAK/40 14 1280 4000 80
AU-EC14F1EMNDAK/30 14 1280 3000 80
AU-EC14F1EMNDAK/40 14 1280 4000 80
AU-EC14F1NDAK/30 14 1280 3000 80
AU-EC14F1NDAK/40 14 1280 4000 80
AU-EC14F2DTAK/30 14 1280 3000 80
AU-EC14F2DTAK/40 14 1280 4000 80
AU-EC14F2EMNDAK/30 14 1280 3000 80
AU-EC14F2EMNDAK/40 14 1280 4000 80
AU-EC14F2NDAK/30 14 1280 3000 80
AU-EC14F2NDAK/40 14 1280 4000 80
AU-EC14F3DTAK/30 14 1280 3000 80
AU-EC14F3DTAK/40 14 1280 4000 80
AU-EC14F3EMNDAK/30 14 1280 3000 80
AU-EC14F3EMNDAK/40 14 1280 4000 80
AU-EC14F3NDAK/30 14 1280 3000 80
AU-EC14F3NDAK/40 14 1280 4000 80
AU-EC14F6DTAK/30 14 1280 3000 80
AU-EC14F6DTAK/40 14 1280 4000 80
AU-EC14F6EMNDAK/30 14 1280 3000 80
AU-EC14F6EMNDAK/40 14 1280 4000 80
AU-EC14F6NDAK/30 14 1280 3000 80
AU-EC14F6NDAK/40 14 1280 4000 80

AU-ECHC14 Eclyps 14W Honeycomb
Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.95
Input Voltage Type
AC
IP Rating
IP20
Cutout Width (mm)
100
Cutout Diameter Min. (mm)
100
Cutout Diameter Max. (mm)
105
Recess Depth (mm)
103
Height (mm)
106
Lifetime (Hours)
50000
Dimmable
No
Positional Adjustment
Fixed
Overall Diameter (mm)
113
