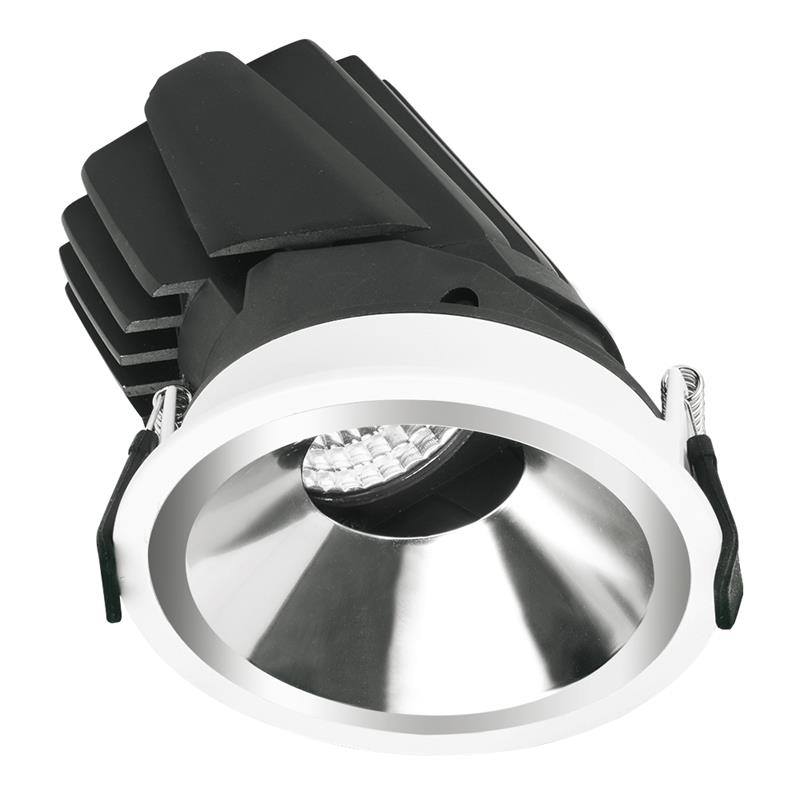

Ecylps 14W Adjustable Downlight

Part of the Eclyps range, the 14W Adjustable COB Downlight luminaire is ideal to set accents within an installation such as the illumination of wall paintings along corridors or in meeting rooms. With a lumen package of 750lm and adjustable head, spaces are further enhanced by applying Eclyps accessories such as Mirror, Black or Silver Matt baffles, Honeycomb attachments or colour filters. Supplied with CRI80 as standard and SDCM<3, clients can also opt for CRI90 options to further enhance colour quality of the installation. Beam angles include 15°, 24° and 36°. L70 is 50,000 hrs. 5 year warranty.

Spec Sheet


  • Dimmable with driver
  • CRI 80 (Selected CRI 90 options available)
  • Up to 91lm/W
  • Beam angles available in 36°, 60° with 15° & 24° to special order
  • Baffle/Filter/Reflector accessories available
  • SDCM < 3
  • 5 Year Warranty
SKU Code Wattage Lumens Colour Temp (K) Ra
AU-EC14A1DTAK/30 14 750 3000 80
AU-EC14A1DTAK/40 14 750 4000 80
AU-EC14A1EMNDAK/30 14 750 3000 80
AU-EC14A1EMNDAK/40 14 750 4000 80
AU-EC14A1NDAK/30 14 750 3000 80
AU-EC14A1NDAK/40 14 750 4000 80
AU-EC14A2DTAK/30 14 750 3000 80
AU-EC14A2DTAK/40 14 750 4000 80
AU-EC14A2EMNDAK/30 14 750 3000 80
AU-EC14A2EMNDAK/40 14 750 4000 80
AU-EC14A2NDAK/30 14 750 3000 80
AU-EC14A2NDAK/40 14 750 4000 80
AU-EC14A3DTAK/30 14 750 3000 80
AU-EC14A3DTAK/40 14 750 4000 80
AU-EC14A3EMNDAK/30 14 750 3000 80
AU-EC14A3EMNDAK/40 14 750 4000 80
AU-EC14A3NDAK/30 14 750 3000 80
AU-EC14A3NDAK/40 14 750 4000 80

AU-ECHC14 Eclyps 14W Honeycomb
Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.95
Input Voltage Type
AC
IP Rating
IP20
Cutout Width (mm)
100
Cutout Diameter Min. (mm)
100
Cutout Diameter Max. (mm)
100
Recess Depth (mm)
115
Height (mm)
119
Lifetime (Hours)
50000
Dimmable
No
Positional Adjustment
Adjustable
Overall Diameter (mm)
113
