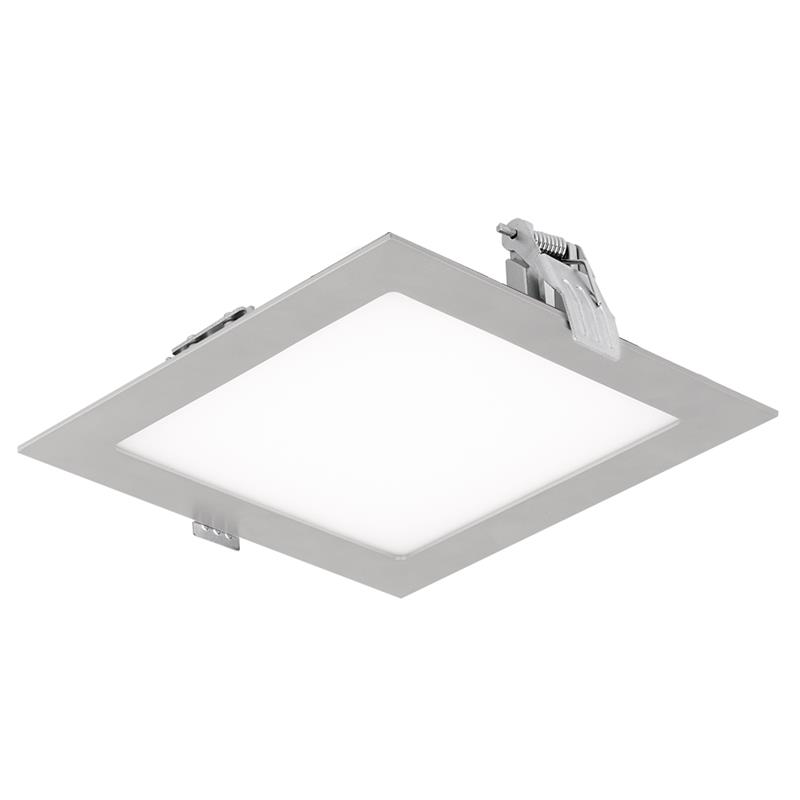

12W Square Low Profile Mini Downlight

Fixed 12W square Low Profile Mini LED downlight for discreet lighting solutions. Highly efficient with up to 92lm/W and a high Power Factor of 0.9. Supplied with remote constant current driver. Available in 3000K and 4000K in Satin Silver or White finish. Non-Dimmable. 5 year warranty.

Spec Sheet


  • LED downlight supplied with remote LED driver
  • Suitable for office or commercial applications
  • Non-dimmable driver included
  • Colour rendering index (Ra) 80
  • (L70) at a 50,000 hour lifetime
  • 5 Year Warranty - see www.auroralighting.com for details
SKU Code Wattage Lumens Colour Temp (K) Ra
AU-DL10312SSAK/30 12 1040 3000 80
AU-DL10312SSAK/40 12 1100 4000 80
AU-DL10312WAK/30 12 1040 3000 80
AU-DL10312WAK/40 12 1100 4000 80

Width (mm)
150
Input Voltage (Min)
100
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
DC
IP Rating
IP20
Cutout Length (mm)
135
Cutout Width (mm)
135
Recess Depth (mm)
40
Height (mm)
43
Length (mm)
150
Lifetime (Hours)
50000
Dimmable
No
Positional Adjustment
Fixed

Download

Instruction Leaflet
Polar Curve
