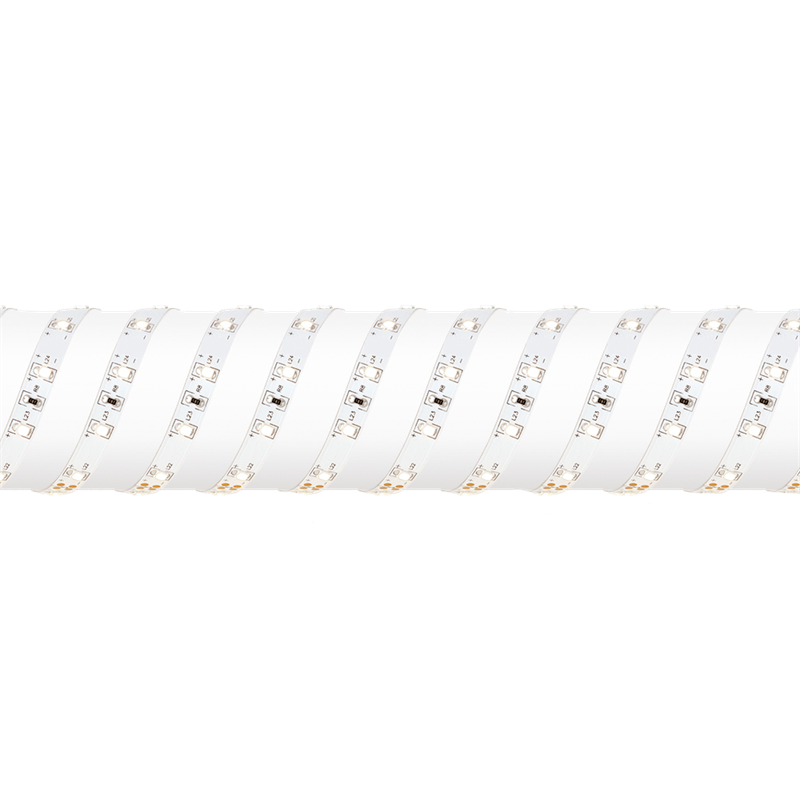

LEDline™ 5m 12V Single Colour Cuttable LED Strip Kit

LEDline™ cuttable 12V single colour LED strip kit is an ideal solution for discreet accent lighting of applications such as undercabinet, pelmet, display, cupboard, sign and other recessed areas that need highlighting.

Spec Sheet


  • Cuttable single colour flexible 5m LED strip kit
  • Ideal for indoor use in various applications including accent, undercabinet, pelmet, signs and display lighting
  • Available in 3000K, 4000K and Blue colour temperatures
  • 3M™ self adhesive backing on rear for easy fixing and installation
  • Cut points every 50mm
  • Plug and power lead included in kit
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
EN-STK5/30 24 1100 3000 70
EN-STK5/40 24 1200 4000 70
EN-STK5/BLU 24 70

EN-CH100 Surface Profile
EN-CH100EC1 Channel End Cap
EN-CH100EC2 Cable Entry Channel End Cap
EN-CH101 Surface Profile
EN-CH101EC1 Channel End Cap
EN-CH101EC2 Cable Entry Channel End Cap
EN-CH102 Recessed Profile
EN-CH102EC1 Channel End Cap
EN-CH102EC2 Cable Entry Channel End Cap
EN-CH103 Recessed Profile
EN-CH103EC1 Channel End Cap
EN-CH103EC2 Cable Entry Channel End Cap
EN-CH104 Corner Profile
EN-CH104EC1 Channel End Cap
EN-CH104EC2 Cable Entry Channel End Cap
EN-CH105 Deep Profile
EN-CH105EC1 Channel End Cap
EN-CH105EC2 Cable Entry Channel End Cap
EN-CHC1 Channel Mounting Clip
EN-CHC2 Channel Mounting Clip
EN-CHPC1CL Clear Diffuser Cover
EN-CHPC1FR Frosted Diffuser Cover
EN-CHPC2FR Frosted Diffuser Cover
Width (mm)
8
Input Voltage (Min)
12
Input Voltage (Max)
12
Power Factor
0.95
Input Voltage Type
DC
IP Rating
IP20
Height (mm)
2
Length (mm)
5000
Lifetime (Hours)
25000
Dimmable
No
Positional Adjustment
Fixed

Download

Instruction Leaflet
