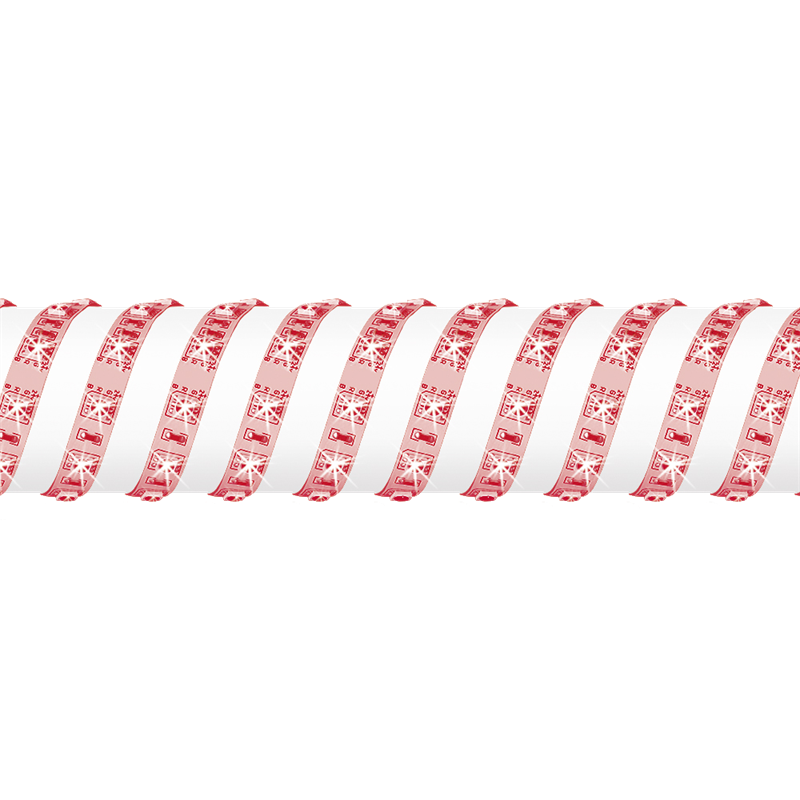

LEDLine™ PRO RGB Flexible Strip

LEDline™ PRO RGB colour 24V super bright LED strip is ideal for when LED strip with a higher lumen output is required. Increased brightness by using twice as many LEDs per metre than standard LED strip. RGB LEDs allows for programmable settings including static colours and colour changing modes. Low power consumption of 14.4W per metre. Strip can be cut to length and 2m leads soldered to special order.

Spec Sheet


  • High density colour changing flexible LED strip with 3M™ self adhesive backing
  • Beam angle of 120° and 17mm between LEDs, 60 LEDs per metre
  • Cut points every 100mm for maximum flexibility
  • Maximum run of 5m
  • For runs over 5m individual lengths should be connected in parallel
  • Requires 24V LED driver (sold separately)
  • Reel length of 30m
  • 3 year warranty
SKU Code Wattage Ra Download
EN-ST224RGB 14.4 80

EN-CH100 Surface Profile
EN-CH100EC1 Channel End Cap
EN-CH100EC2 Cable Entry Channel End Cap
EN-CH101 Surface Profile
EN-CH101EC1 Channel End Cap
EN-CH101EC2 Cable Entry Channel End Cap
EN-CH102 Recessed Profile
EN-CH102EC1 Channel End Cap
EN-CH102EC2 Cable Entry Channel End Cap
EN-CH103 Recessed Profile
EN-CH103EC1 Channel End Cap
EN-CH103EC2 Cable Entry Channel End Cap
EN-CH104 Corner Profile
EN-CH104EC1 Channel End Cap
EN-CH104EC2 Cable Entry Channel End Cap
EN-CH105 Deep Profile
EN-CH105EC1 Channel End Cap
EN-CH105EC2 Cable Entry Channel End Cap
EN-CHC1 Channel Mounting Clip
EN-CHC2 Channel Mounting Clip
EN-CHPC1CL Clear Diffuser Cover
EN-CHPC1FR Frosted Diffuser Cover
EN-CHPC2FR Frosted Diffuser Cover
EN-STRGBA LEDLine™ PRO RGB Strip Connector
EN-STRGBB LEDLine™ PRO RGB Wired Strip Connector
EN-STRGBC LEDLine™ PRO RGB Inter-Connection Strip Connector
Width (mm)
10
Input Voltage (Min)
24
Input Voltage (Max)
24
Input Voltage Type
DC
IP Rating
IP20
Height (mm)
3
Lifetime (Hours)
35000
Dimmable
Yes
Positional Adjustment
Fixed

Download

Instruction Leaflet
