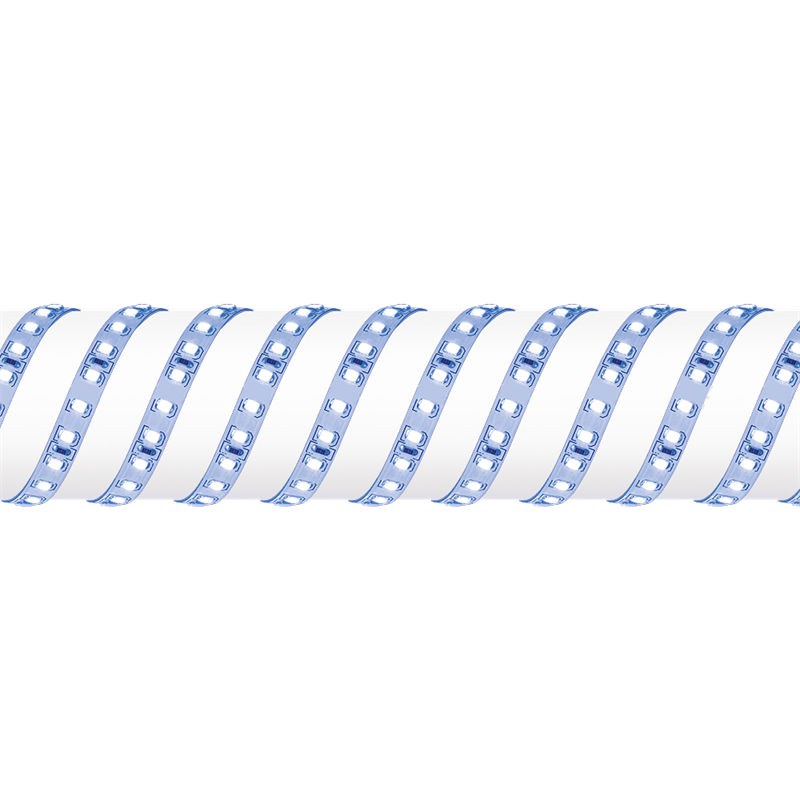

LEDLine™ PRO Single Colour Flexible Strip

LEDline™ PRO single colour 24V super bright LED strip is ideal for when LED strip with a higher lumen output is required. Increased brightness by using twice as many LEDs per metre than standard LED strip. Low power consumption of 9.6W per metre. Strip can be cut to length and 2m leads soldered to special order.

Spec Sheet


  • High density single colour flexible LED strip with 3M™ self adhesive backing
  • Beam angle of 120° and 9mm between LEDs, 120 LEDs per metre
  • Cut points every 50mm for maximum flexibility
  • Voltage drop of 4.5V per 10m and maximum run of 10m
  • For runs over 10m individual lengths should be connected in parallel
  • Requires 24V LED driver (sold separately)
  • Reel length of 10m
  • 3 year warranty
SKU Code Wattage Ra Lumens Colour Temp (K) Download
EN-ST224/27 9.6 80 960 2700
EN-ST224/30 9.6 80 960 3000
EN-ST224/40 9.6 80 1027 4000
EN-ST224/60 9.6 80 1084 6300
EN-ST224/BLU 9.6 80

EN-CH100 Surface Profile
EN-CH100EC1 Channel End Cap
EN-CH100EC2 Cable Entry Channel End Cap
EN-CH101 Surface Profile
EN-CH101EC1 Channel End Cap
EN-CH101EC2 Cable Entry Channel End Cap
EN-CH102 Recessed Profile
EN-CH102EC1 Channel End Cap
EN-CH102EC2 Cable Entry Channel End Cap
EN-CH103 Recessed Profile
EN-CH103EC1 Channel End Cap
EN-CH103EC2 Cable Entry Channel End Cap
EN-CH104 Corner Profile
EN-CH104EC1 Channel End Cap
EN-CH104EC2 Cable Entry Channel End Cap
EN-CH105 Deep Profile
EN-CH105EC1 Channel End Cap
EN-CH105EC2 Cable Entry Channel End Cap
EN-CHC1 Channel Mounting Clip
EN-CHC2 Channel Mounting Clip
EN-CHPC1CL Clear Diffuser Cover
EN-CHPC1FR Frosted Diffuser Cover
EN-CHPC2FR Frosted Diffuser Cover
EN-ST224A موصل - شريحة ضوئية LED بلون واحد
EN-ST224B موصل بأسلاك - شريحة ضوئية LED بلون واحد
EN-ST224C LEDLine™ PRO Single Colour Inter-Connection Strip Connector
Width (mm)
8
Input Voltage (Min)
24
Input Voltage (Max)
24
Input Voltage Type
DC
IP Rating
IP20
Height (mm)
2
Length (mm)
10000
Lifetime (Hours)
35000
Dimmable
Yes
Positional Adjustment
Fixed
