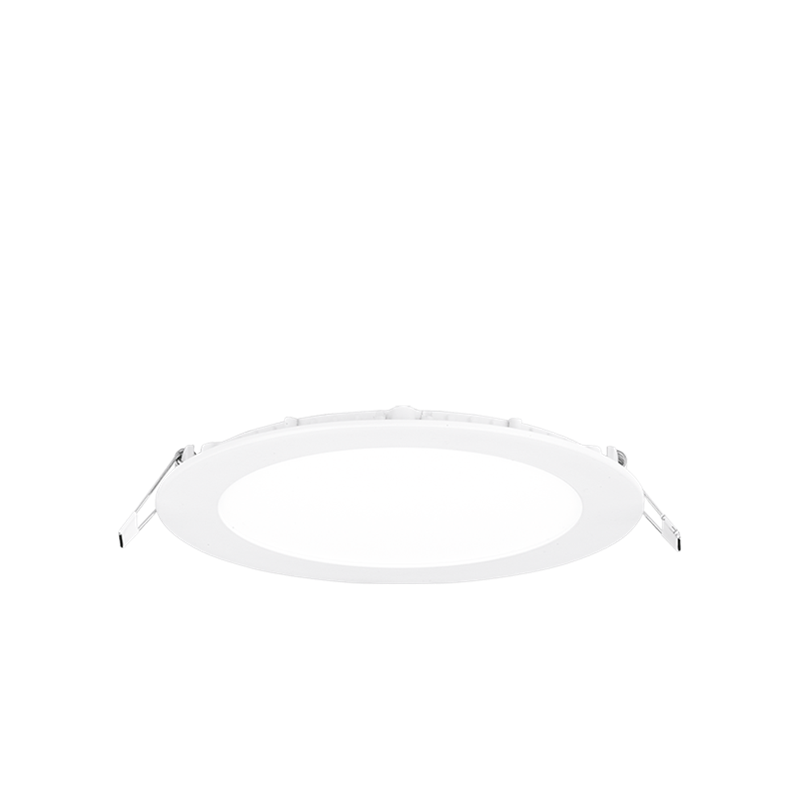

Slim-Fit™ 12W IP44 Round Low Profile LED Downlight



The Enlite range of Slim-Fit™ low profile downlights are engineered to deliver superior light output and uniformity utilising the latest edge-lit LED technology. At only 25mm deep including bracket, they are an ideal solution where ceiling voids are limited but high lumen output is required.

SKU Code Wattage Lumens Colour Temperature Dimmable
EN-PL12B/30 12 660 3000 No
EN-PL12B/40 12 780 4000 No
EN-PL12B/65 12 850 6500 No
SKU Code Description
EN-PLDD12 Slim-Fit™ 12W 300mA Dimmable Driver For Low Profile Downlight
EN-PLEM Slim-Fit™ 3 Hour Emergency Pack 6W - 12W
Please Note: May not be compatible with PIR’s. Please contact sales office for compatibility
DOWNLOADS
All IES/LDT Files
EN-PL12B/30
EN-PL12B/40
EN-PL12B/65
Features & Benefits
Low cost energy saving alternative to compact fluorescent fittings
Edge-lit low profile ideal for installations with limited recess space (25mm) and shallow ceiling voids
Plug and play remote driver for easy installation (40mm space required)
Separate triac dimmable driver available
Life not affected by frequent switching e.g. when used with occupancy controls
1.5kV surge protected
IP44 rated
3 year warranty
Read More
Technical Information
Lifetime (Hours)
25000
Power Factor
0.9
IP Rating
IP44
Overall Diameter (mm)
174
Height (mm)
25
Recess Depth (mm)
50
Cutout Diameter Min. (mm)
157
Cutout Diameter Max. (mm)
157
  • Non-Replaceable LED
    Non-Replaceable LED
  • RoHS
    RoHS
  • IP44
    IP44
  • LED Light Source
    LED Light Source
  • CE
    CE
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • 240V
    240V
