LED Troffer
Spec Sheet

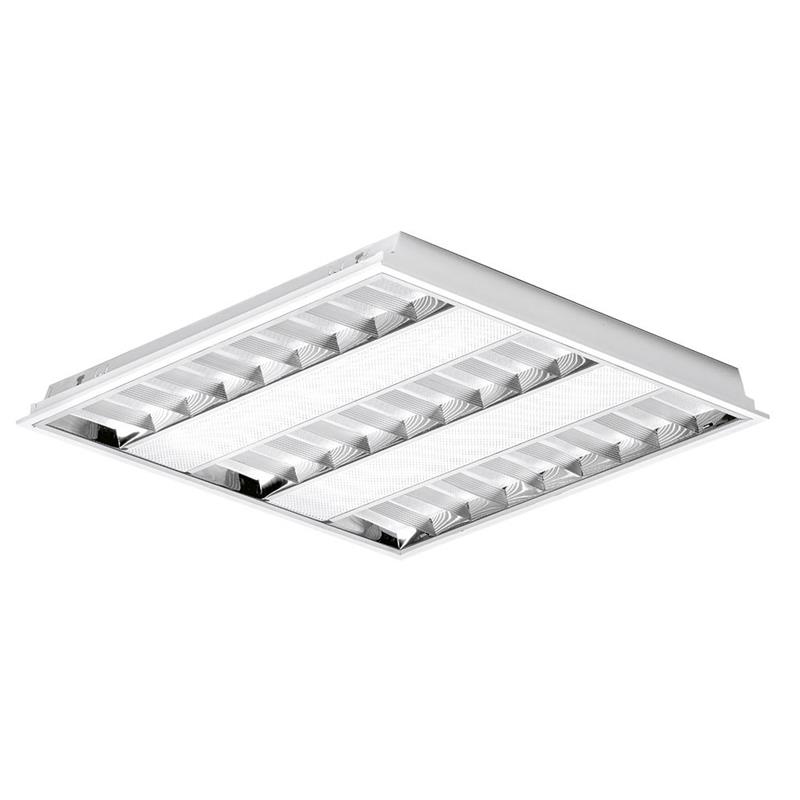

ET6060 200-240V 600x600mm LED Louvred Troffer



The new ET6060 and ET1230 has a classic louvre design with energy saving LED technology inside. This back-lit louvred troffer has a deep curve aluminium mirror reflector and prismatic diffuser keeping the UGR below 19, ideal for office or education applications with efficacy up to 100lm/W for great energy savings. This luminaire is designed to last with its phosphate treated surfaces, making it more resistant to corrosion and wear.

Features & Benefits
Back-lit design with prismatic diffuser provides uniformed low glare light output
77° beam angle
UGR <19 (Unified Glare Rating) - suitable for use in offices
Power Factor >0.9
1-10V and DALI dimmable driver as well as separate emergency pack available
1.5kV surge protection
3 year warranty
Read More
Technical Information
Lifetime (Hours)
40000
Power Factor
0.9
IP Rating
IP20
Length (mm)
595
Width (mm)
595
Height (mm)
56
  • Non-Replaceable LED
    Non-Replaceable LED
  • RoHS
    RoHS
  • Class 2 Equipment
    Class 2 Equipment
  • Equipment for Indoor Use
    Equipment for Indoor Use
  • SAA
    SAA
  • LED Light Source
    LED Light Source
  • 240V
    240V
