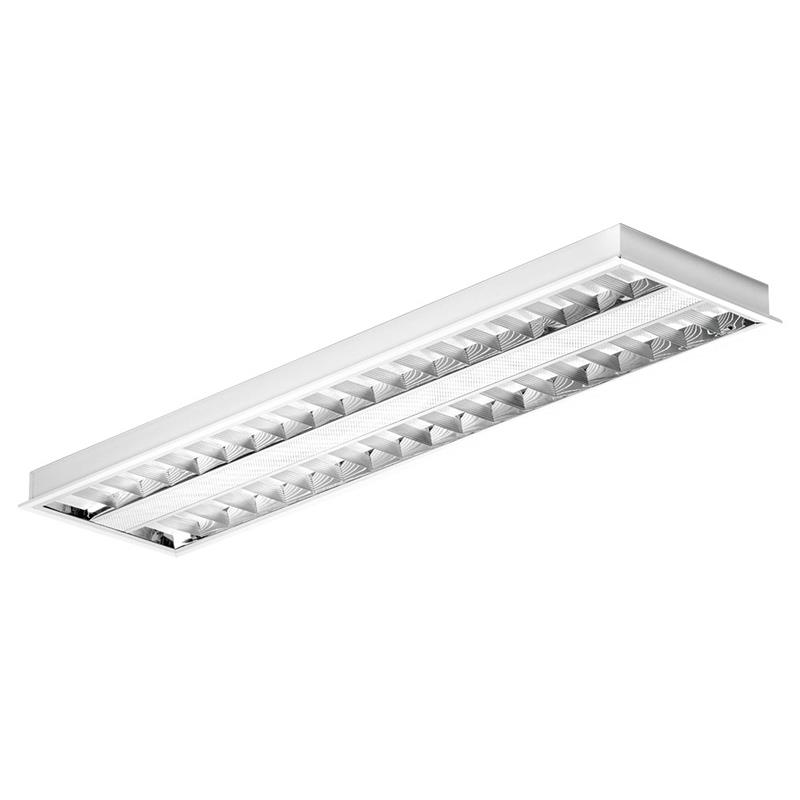

ET1230 200-240V 1200x300mm LED Louvred Troffer

The new ET6060 and ET1230 has a classic louvre design with energy saving LED technology inside. This back-lit louvred troffer has a deep curve aluminium mirror reflector and prismatic diffuser keeping the UGR below 19, ideal for office or education applications with efficacy up to 100lm/W for great energy savings. This luminaire is designed to last with its phosphate treated surfaces, making it more resistant to corrosion and wear.

Spec Sheet


  • Back-lit design with prismatic diffuser provides uniformed low glare light output
  • 77° beam angle
  • UGR <19 (Unified Glare Rating) - suitable for use in offices
  • Power Factor >0.9
  • 1-10V and DALI dimmable driver as well as separate emergency pack available
  • 1.5kV surge protection
  • 3 year warranty

Width (mm)
295
Input Voltage (Min)
200
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP20
Height (mm)
56
Length (mm)
1195
Lifetime (Hours)
40000
Positional Adjustment
Fixed

Download

Instruction Leaflet
