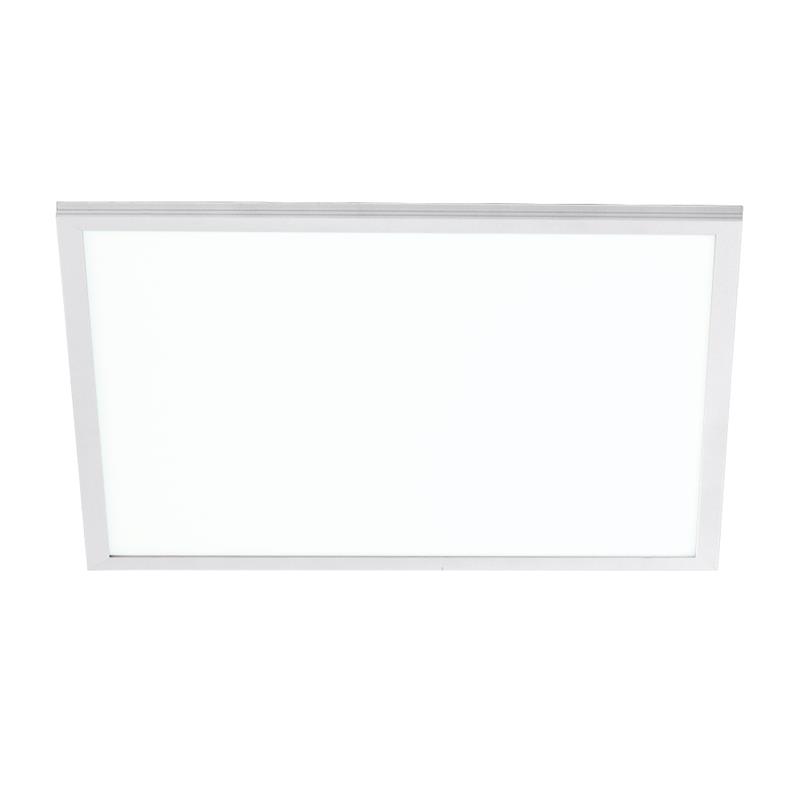

E6060™ 600 x 600mm 40W Dimmable LED Flat Panel



The ultra-slim E6060™, E1230™ and E1260™ edge-lit LED panel range are suitable for a wide range of applications including office, education and commercial spaces. The advanced aluminium heat sink dissipates unwanted heat allowing for a flat form factor. The range is engineered to deliver a Unified Glare Rating of 19 (UGR19) for even light distribution.

Features & Benefits
Edge-lit design and optical pattern light guide engineered for even light distribution
Suitable for installation in 15 & 24mm T-bar ceilings
SDCM <4 providing consistent light colour quality
IP44 rated
UGR 19 (Unified Glare Rating) - suitable for use in offices
Flicker free driver - Power Factor >0.9
Life not affected by frequent switching e.g. when used with occupancy controls
1-10V dimmable and separate emergency pack available
Surface mount box and adjustable suspension kit available
1.5kV surge protection
3 year warranty
Read More
Technical Information
Lifetime (Hours)
40000
Power Factor
0.9
IP Rating
IP44
Length (mm)
595
Width (mm)
595
Height (mm)
10
