E6060™

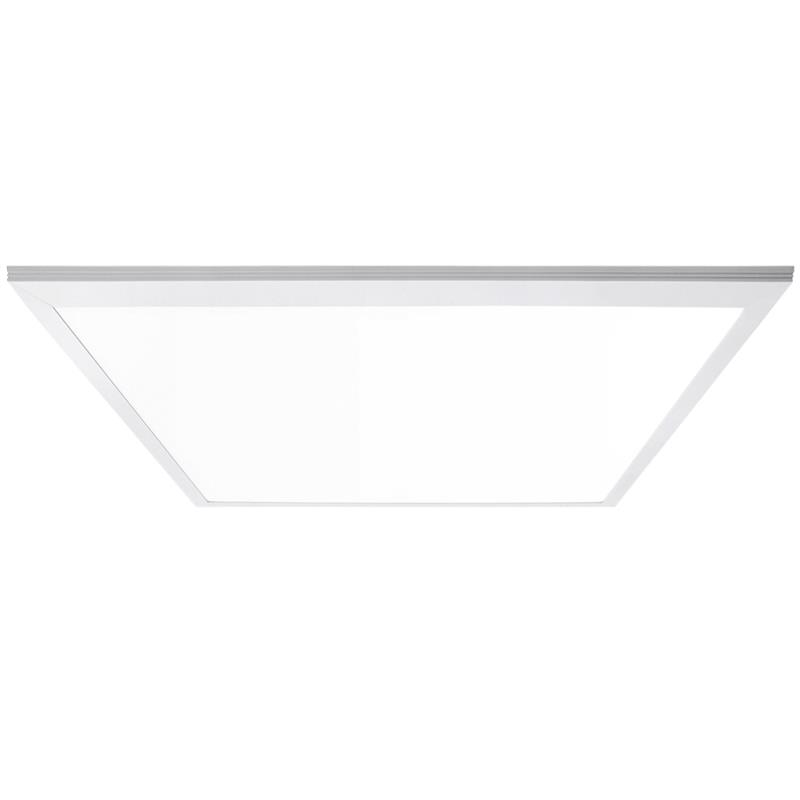

E6060™ 600 x 600mm 40W Non-Dimmable LED Flat Panel

The ultra-slim E6060™, E1230™ and E1260™ edge-lit LED panel range are suitable for a wide range of applications including office, education and commercial spaces. The advanced aluminium heat sink dissipates unwanted heat allowing for a flat form factor. The range is engineered to deliver a Unified Glare Rating of 19 (UGR19) for even light distribution.

Spec Sheet


  • Edge-lit design and optical pattern light guide engineered for even light distribution
  • Suitable for installation in 15 & 24mm T-bar ceilings
  • SDCM <5 providing consistent light colour quality
  • IP44 rated
  • UGR 19 (Unified Glare Rating) - suitable for use in offices
  • Flicker free driver - Power Factor >0.9
  • Life not affected by frequent switching e.g. when used with occupancy controls
  • 1-10V dimmable and separate emergency pack available
  • Surface mount box and adjustable suspension kit available
  • 1.5kV surge protection
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
EN-FP6060B/40 40 3600 4000 80

Width (mm)
595
Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP44
Height (mm)
10
Length (mm)
595
Lifetime (Hours)
40000
Dimmable
No
Positional Adjustment
Fixed

Download

Instruction Leaflet
Polar Curve
