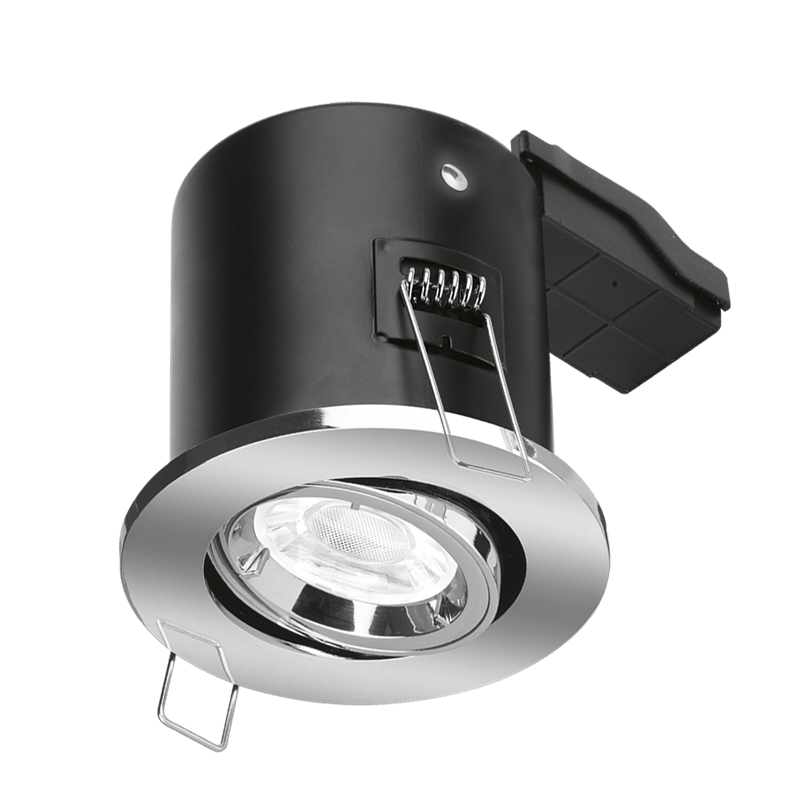

EFD™ GU10 Adjustable Lock Ring Aluminium Fire Rated Downlight

The complete EFD™ GU10 range of compact fire rated downlights are perfect for a wide range of applications and installations. Available in fixed, adjustable, IP65 rated and various colour finishes, the range utilises patented integrated intumescent material completely sealing the downlight and cut-out in the event of a fire.

Spec Sheet


  • New and improved loop in/out terminal block for quick and easy installation
  • Tested in 30, 60 and 90-minute fire rated ceilings
  • 3 year warranty
SKU Code Max. Lamp Wattage Download
EN-FD102PC 50
EN-FD102SN 50
EN-FD102W 50

Input Voltage (Min)
240
Input Voltage (Max)
240
Input Voltage Type
AC
IP Rating
IP20
Cutout Diameter Min. (mm)
90
Recess Depth (mm)
155
Height (mm)
130
Positional Adjustment
Adjustable
Overall Diameter (mm)
100

Download

Instruction Leaflet
Instruction Leaflet
