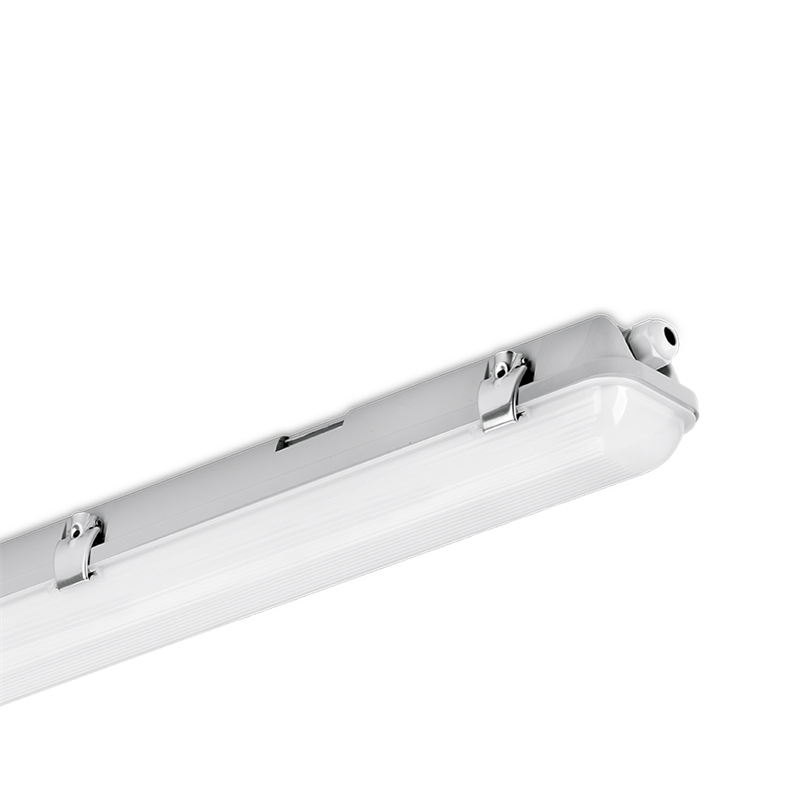

LinearPac™ 1500mm 58W IP65 LED Anti-Corrosive

The IP65 LinearPac™ LED anti-corrosive has been upgraded up to a market leading 116lm/W providing up to 50% energy savings compared to traditional fluorescent. A highly efficient solution for both interior and exterior applications, it is designed for car parks, service areas, warehouses or retail environments.

Spec Sheet


  • IP65 vandal resistant polycarbonate body and diffuser
  • Efficacy of up to 114lm/W
  • Anti-tamper stainless steel clips supplied as standard
  • Clip in gear tray for ease of installation and maintenance
  • Multiple drill-out conduit entry points end and rear for quick and easy installation
  • Supplied with 2 x IP rated cable glands
  • Microwave sensor detection range up to 14 metres
  • Adjustable light detector from 2-50 lux
  • Adjustable hold time 5 seconds to 15 minutes
  • IK08 impact rating
  • 1.0kV surge protection
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
EN-ANT1558B/40 58 6600 4000 80
EN-ANT1558BEM/40 58 6600 4000 80

Width (mm)
118
DALI
No
Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.90
Input Voltage Type
AC
IP Rating
IP65
Height (mm)
80
Length (mm)
1570
Lifetime (Hours)
30000
Dimmable
No
Positional Adjustment
Fixed

Download

Instruction Leaflet
Instruction Leaflet - EM
Instruction Leaflet - MS
