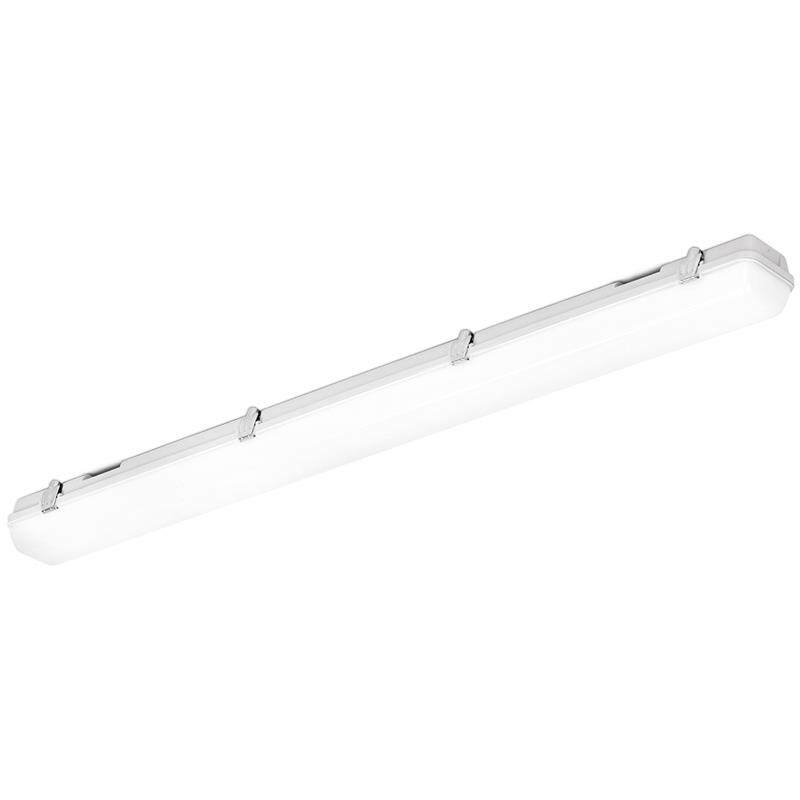

LinearPac™ 1500mm 54W IP65 Polycarbonate LED Anti-Corrosive

The IP65 LinearPac™ LED anti-corrosive is an ideal solution for both interior and exterior applications, allowing for an energy reduction compared to traditional linear fluorescent fittings. Popular for car parks, service areas, warehouses or retail applications, LinearPac creates the needed lighting levels while providing the energy savings desired.

Spec Sheet


  • IP65 vandal resistant polycarbonate body and diffuser
  • Efficacy of up to 100 lm/W
  • Ideal for both interior and exterior applications e.g. carparks
  • Anti-tamper stainless steel clips supplied as standard
  • Diffuser permanently attached by two clips for ease of installation
  • Gear tray restraints for ease of installation and maintenance
  • Through cable wiring with multiple drill-out conduit entry points for quick and easy installation
  • Microwave sensor detection range up to 12 metres
  • Adjustable light detector from 5-50 lux
  • Adjustable hold time 5 seconds to 30 minutes
  • IK08 impact rating
  • 1.5kV surge protection
  • 3 year warranty
SKU Code Wattage Lumens Colour Temp (K) Ra Download
EN-ANT1554/40 54 5000 4000 80
EN-ANT1554/40EM 54 5000 4000 80
EN-ANT1554/40MS 54 5000 4000 80
IES
EN-ANT1554/60 54 5400 6000 80
EN-ANT1554/60EM 54 5400 6000 80
EN-ANT1554/60MS 54 5400 6000 80

Width (mm)
110
Input Voltage (Min)
100
Input Voltage (Max)
240
Power Factor
0.95
Input Voltage Type
AC
IP Rating
IP65
Height (mm)
85
Length (mm)
1550
Lifetime (Hours)
40000
Dimmable
No
Positional Adjustment
Fixed

Download

Instruction Leaflet
Instruction Leaflet
Polar Curve
