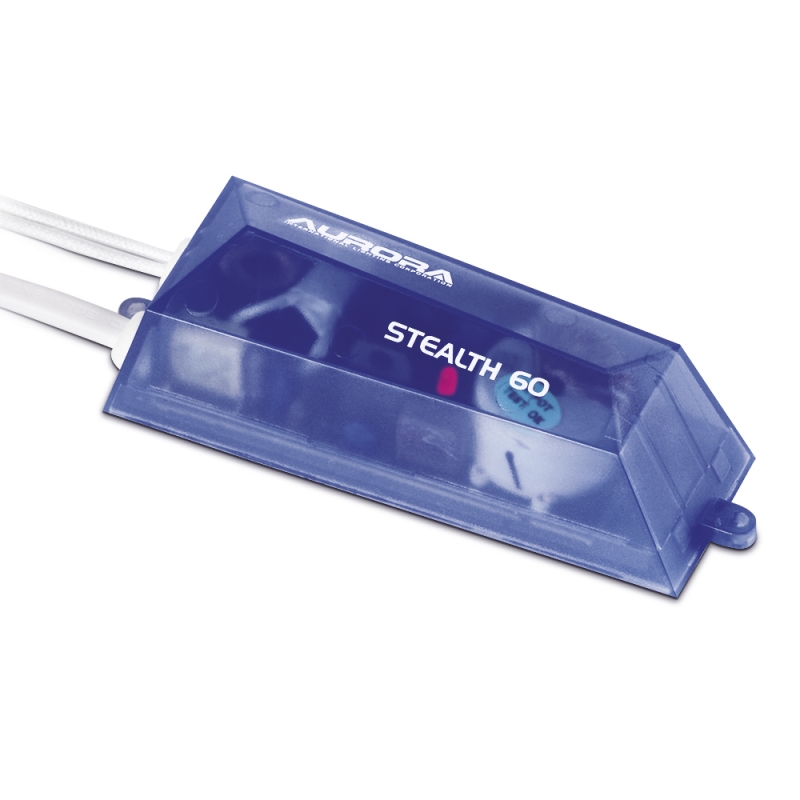

20-60W/VA Electronic Transformer

Spec Sheet


  • UK Registered Design No. 2106049
  • Patented Self Monitoring technology (Pat.No.GB2371424)
  • Fully dimmable with resistive & inductive dimmers
  • Auto-reset thermal protection
  • 1.0kV SURGE PROTECTION – EN 61547
  • Suitable for use in commercial or light industrial installations
  • Pre-wired 30cm primary lead
  • 30cm heat resistant secondary leads
  • Safety compliance – EN 61347
  • EMC compliance – EN 55015, EN 61000, EN 61547
  • 10 Year guarantee
  • NOTE: MAX. CABLE LENGTH FROM TRANSFORMER TO THE FURTHEST LAMP IS 2M
  • MONITORING LED STATUS
  • ON – Normal operation
  • OFF – Out of order (check mains power supply)
  • SLOW FLASHING – Short circuit on transformer output
  • RAPID FLASHING – Overload condition on transformer output

Width (mm)
39
Input Voltage (Min)
220
Input Voltage (Max)
250
Input Voltage Type
AC
Height (mm)
30
Length (mm)
89
