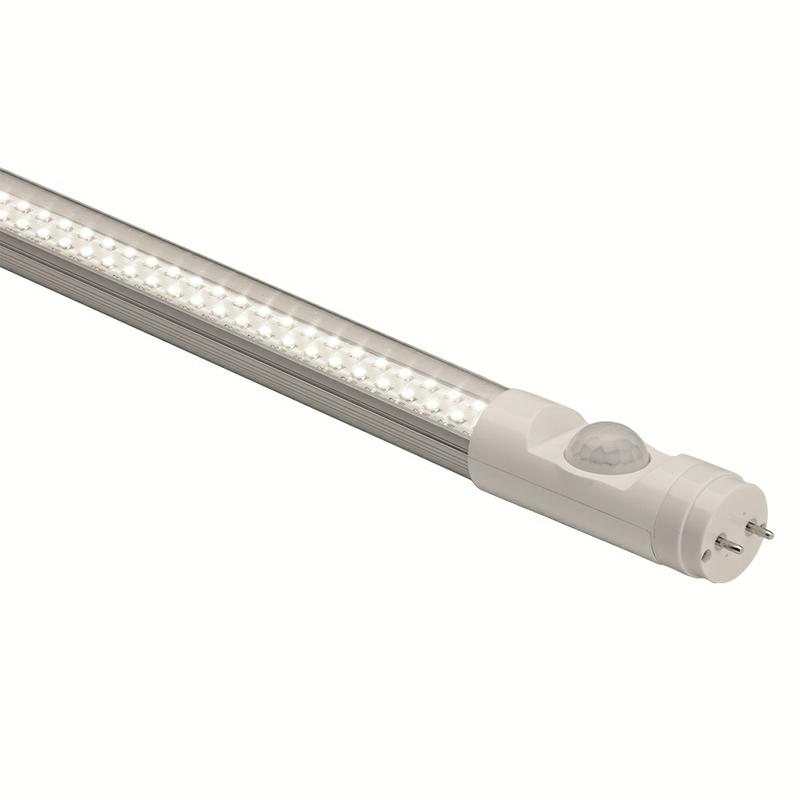

T8 30W 1800mm

Spec Sheet


  • Community Registered Design 001917592
  • Integrated passive infra-red sensor
  • 140 degrees area of detection
  • 5-8m detection range
  • Potentiometers on the PIR for adjustment of time delay and brightness
  • Time can be set from 30 seconds to 30 minutes
  • Brightness can be set to 0, 10, 20, 30 or 40%
  • After the last movement is detected the tube will remain fully lit for the time delay period. The lamp will then dim to the set brightness level
  • Rotatable end caps
  • 3 Rows of SMD LEDs
  • Aluminium back for heatsinking of LEDs
  • Impact resistant clear or frosted polycarbonate diffuser
  • High power factor >0.90
  • Suitable for use at -20° to +40°C
  • 1kV surge protection
  • Beam 120°
  • Voltage range 110-265V
  • Life to 70% lumen maintenance - 40,000 hours

Input Voltage (Min)
100
Input Voltage (Max)
265
Input Voltage Type
AC/DC
Lifetime (Hours)
40000
Overall Diameter (mm)
28
