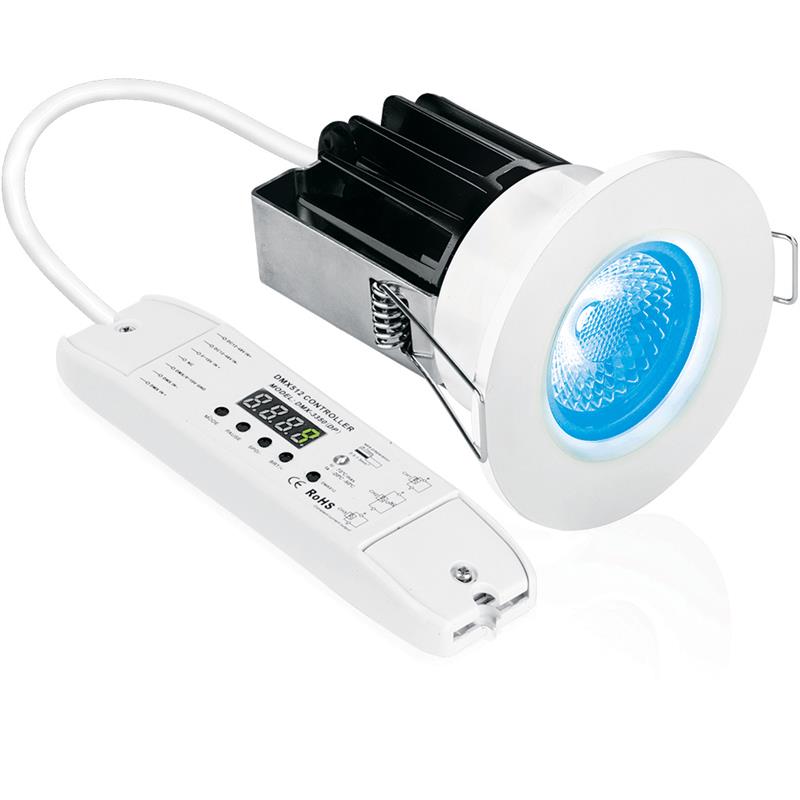

m10™ 15W IP65 RGB Fire Rated Downlight

Spec Sheet


  • Fire rated RGB LED colour changing downlight
  • CrystalCool™ next generation thermal management offers brighter light for longer
  • Patented LEDchroic™ lens provides anti-glare, precise beam control and even colour mixing
  • 3 in 1 RGB LED chip provides even colour mixing and higher colour output
  • 3 Channel DMX decoder included
  • 12V DC Constant voltage LED driver required (not supplied)
  • Can be used with AU-DMXRGBC wall controller or any DMX control system
  • Complete RGB colour spectrum including white (the white produced by RGB products is not the same as the white produced by single colour LEDs)
  • (L70) at a 40,000 hour lifetime
  • 5 Year Warranty – see www.auroralighting.com for details

Input Voltage (Min)
220
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP65
Cutout Diameter Min. (mm)
65
Cutout Diameter Max. (mm)
72
Recess Depth (mm)
95
Height (mm)
83
Lifetime (Hours)
40000
Dimmable
Yes
Positional Adjustment
Fixed
Overall Diameter (mm)
88
