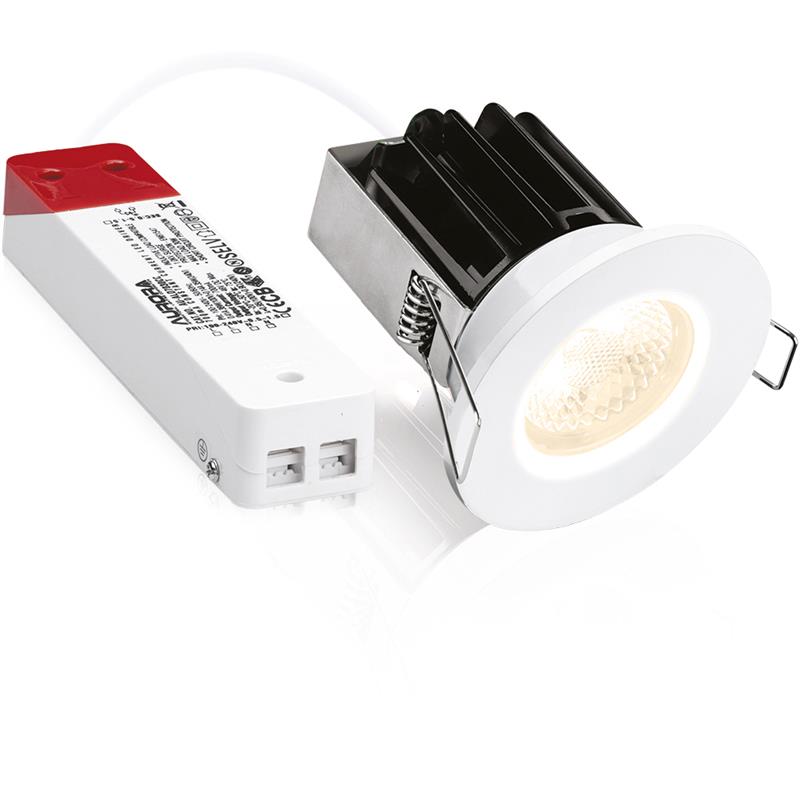

m10™ 10W IP65 CX Fire Rated Downlight

Spec Sheet


  • Rated to 30, 60 & 90 minute fire ceilings
  • CX Colour Xchange - Warm white to Cool white colour temperature adjustment 2700K – 6500K
  • Single source LED eliminates overshadowing and provides even white colour mixing
  • Ideal for retail, residential and commercial applications
  • AU-M10CXA – full colour temperature adjustment and dimming functions (up to 30 AU-M10CXA can be controlled by one AU-DLED801C)
  • Twist&Lock™ IP65 Interchangeable bezels - sold separately
  • BS EN 1365-2:2000 (Fire resistance)
  • BS EN ISO 140-3:1995 & BS EN ISO 140-6:1998 (Acoustics)
  • BS EN 13141-1:2004 (Air leakage)
  • (L70) at a 40,000 hour lifetime
  • 5 Year Warranty – see www.auroralighting.com for details

Width (mm)
88
Input Voltage (Min)
110
Input Voltage (Max)
240
Power Factor
0.9
Input Voltage Type
AC
IP Rating
IP65
Cutout Diameter Min. (mm)
65
Cutout Diameter Max. (mm)
72
Recess Depth (mm)
95
Height (mm)
83
Length (mm)
88
Lifetime (Hours)
40000
Dimmable
Yes
Positional Adjustment
Fixed
Overall Diameter (mm)
88
