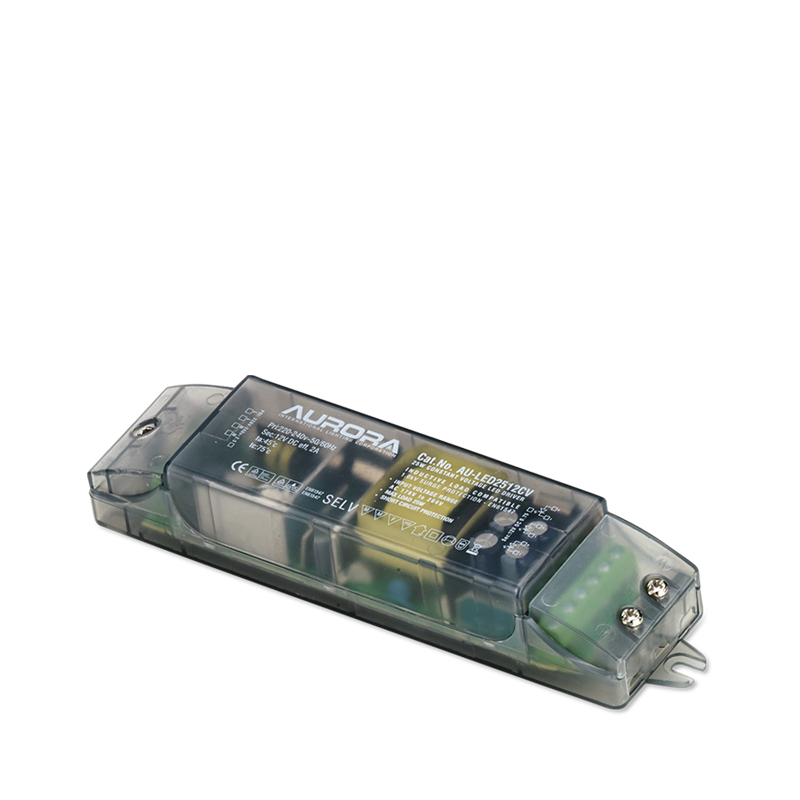

25W Non-Dimmable 12V Constant Voltage Driver

For the supply of low voltage LED lamps. 12V DC output.

Spec Sheet


  • Registered Community Design 001886730
  • For the supply of low voltage LED lamps
  • 12V DC output
  • Overload protection
  • Short circuit protection
  • Thermal protection
  • Secondary wiring terminals - 3 outputs
  • Loop-in, loop-out primary wiring terminals
  • Integrated earth terminal for earth continuity
  • No junction box required
  • 1.0kV SURGE PROTECTION – EN 61547
  • Safety compliance – EN 61347
  • EMC compliance – EN 55015, EN 61000, EN 61547
  • Non-dimmable
  • Parallel wiring only
  • 3 Year Warranty - see www.auroralighting.com for details
SKU Code Wattage
AU-LED2512CV 25

Width (mm)
38
Input Voltage (Min)
100
Input Voltage (Max)
264
Input Voltage Type
AC
IP Rating
IP20
Height (mm)
28
Length (mm)
145
Dimmable
No
Positional Adjustment
Fixed
