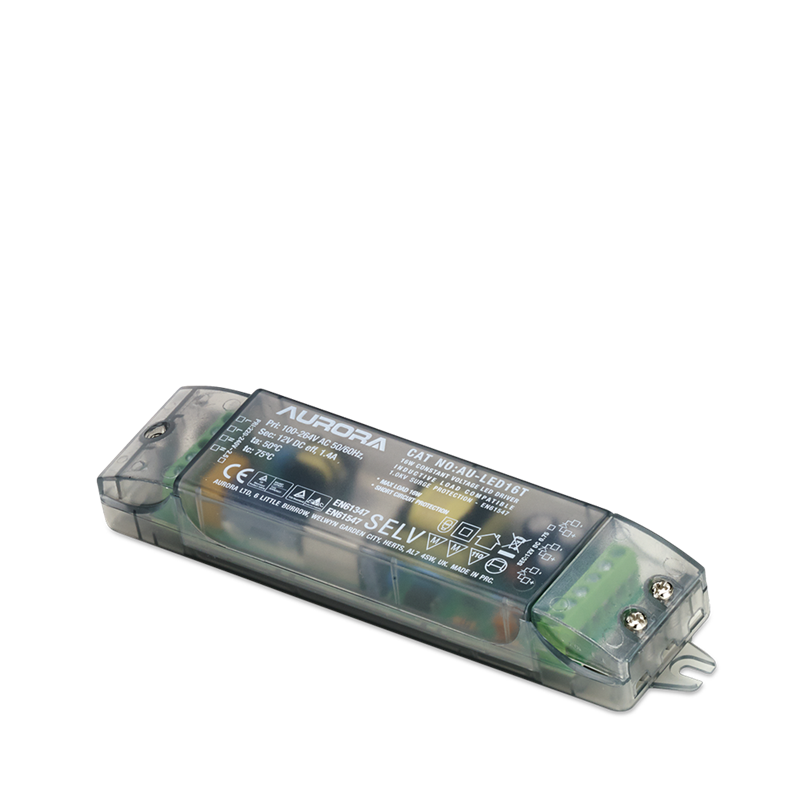

16W Non-Dimmable 12V Constant Voltage Driver

12V DC Non-Dimmable Constant Voltage LED Driver.

Spec Sheet


  • Registered Community Design 001886730
  • For the supply of low voltage LED lamps
  • 12V DC output
  • Overload protection
  • Short circuit protection
  • Thermal protection
  • Secondary wiring terminals - 3 outputs
  • Loop-in, loop-out primary wiring terminals
  • Integrated earth terminal for earth continuity
  • No junction box required
  • 1.0kV SURGE PROTECTION – EN 61547
  • Safety compliance – EN 61347
  • EMC compliance – EN 55015, EN 61000, EN 61547
  • Non-dimmable
  • Parallel wiring only
  • NB - when used with MR8 LED lamps - minimum of 2 lamps
  • 3 Year Warranty - see www.auroralighting.com for details
SKU Code Wattage
AU-LED16T 16

Width (mm)
38
Input Voltage (Min)
100
Input Voltage (Max)
264
Input Voltage Type
AC
Height (mm)
24
Length (mm)
156
Dimmable
No
Positional Adjustment
Fixed

Download

Instruction Leaflet
