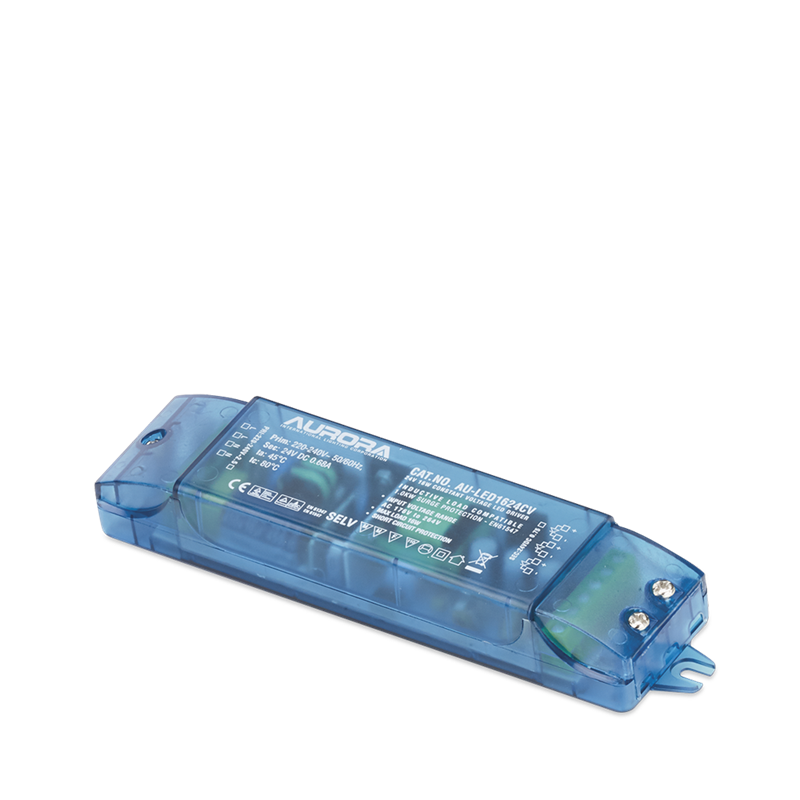

16W Non-Dimmable 24V Constant Voltage Driver

24V DC Non-Dimmable Constant Voltage LED Driver.

Spec Sheet


  • Registered Community Design 001886730
  • For the supply of low voltage LED lamps
  • Short circuit protection
  • Thermal protection
  • 24V DC output
  • 1.0kV SURGE PROTECTION
  • Secondary wiring terminals - 3 outputs
  • Loop-in, loop-out primary wiring terminals
  • Integrated earth terminal for earth continuity
  • No junction box required
  • Non-dimmable
  • Parallel wiring only
  • 3 Year guarantee
SKU Code Wattage
AU-LED1624CV 16

Width (mm)
38
Input Voltage (Min)
220
Input Voltage (Max)
240
Input Voltage Type
AC
Height (mm)
24
Length (mm)
156
Dimmable
No
Positional Adjustment
Fixed

Download

Instruction Leaflet
