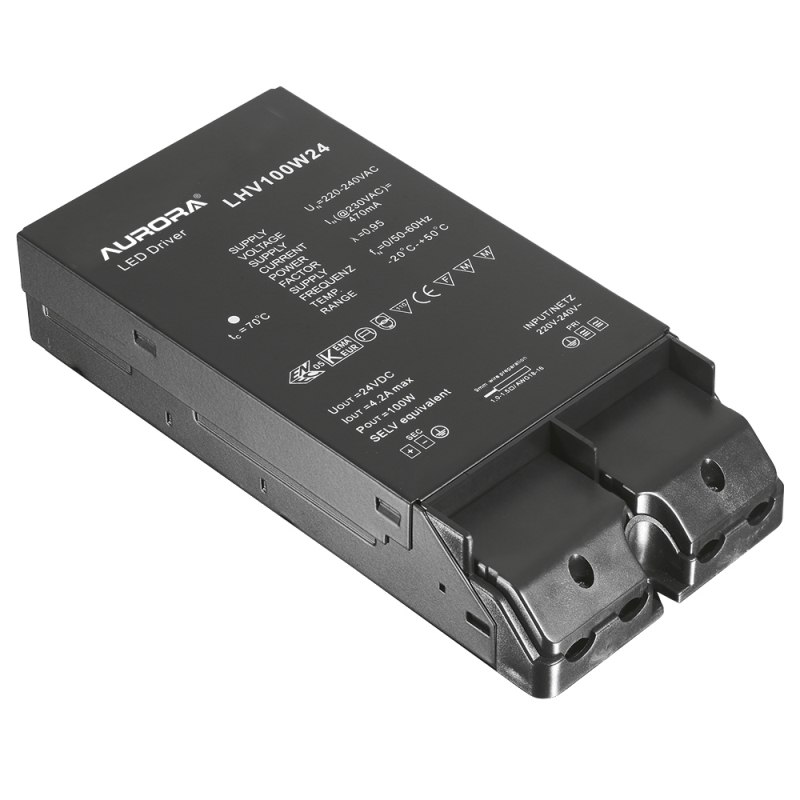

100W Non-Dimmable Constant Voltage Driver

Spec Sheet


  • For the supply of low voltage LED lamps
  • 24V DC output
  • Overload protection
  • Short circuit protection
  • Thermal protection
  • Secondary wiring terminals - 1 output
  • Loop-in, loop-out primary wiring terminals
  • Integrated earth terminal for earth continuity
  • No junction box required
  • 1.0kV SURGE PROTECTION – EN 61547
  • Safety compliance – EN 61347
  • EMC compliance – EN 55015, EN 61000, EN 61547
  • Non-dimmable
  • Parallel wiring only
  • 3 Year Warranty - see www.auroralighting.com for details

Width (mm)
88
Input Voltage (Min)
220
Input Voltage (Max)
240
Input Voltage Type
AC
IP Rating
IP20
Height (mm)
35
Length (mm)
190

Download

Instruction Leaflet
