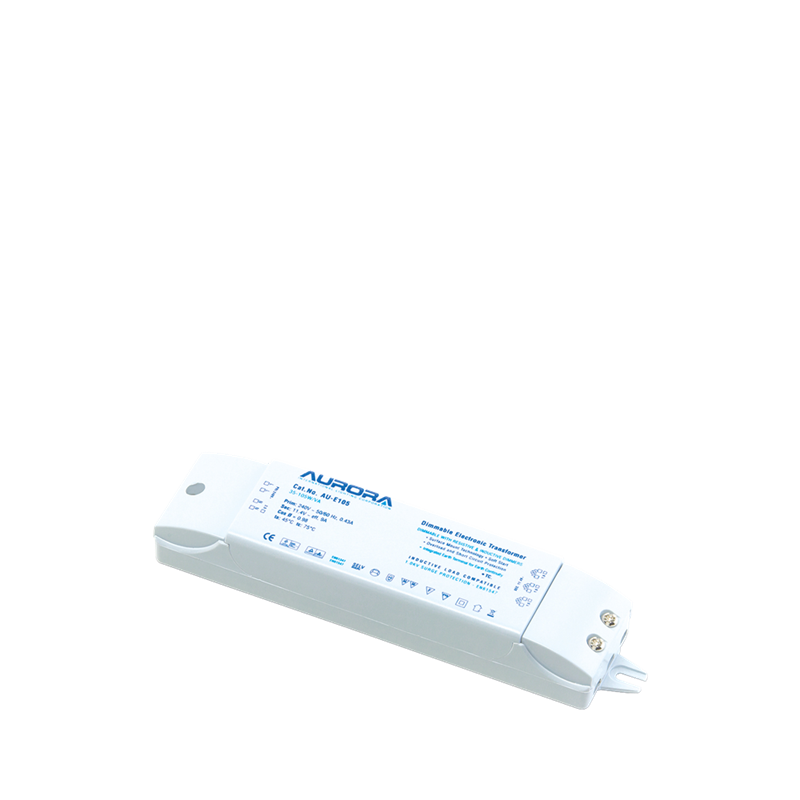

35-105W/VA Transformer

Premium Electronic Transformers, fully dimmable with resistive and inductive dimmers.

Spec Sheet


  • Fully dimmable with resistive & inductive dimmers
  • Auto-reset thermal protection
  • Short circuit and overload protection
  • 1.0kV SURGE PROTECTION – EN 61547
  • 'Loop-in, Loop-out' primary wiring terminals
  • Integrated earth terminal for earth continuity
  • No junction box required
  • Secondary wiring terminals - 3 outputs
  • Maximum load on one output - 105VA
  • Safety compliance – EN 61347
  • EMC compliance – EN 55015, EN 61000, EN 61547
  • 5 Year Warranty - see www.auroralighting.com for details
SKU Code
AU-E105

Width (mm)
38
Input Voltage (Min)
220
Input Voltage (Max)
250
Input Voltage Type
AC
Height (mm)
25
Length (mm)
145
Dimmable
No
Positional Adjustment
Fixed
