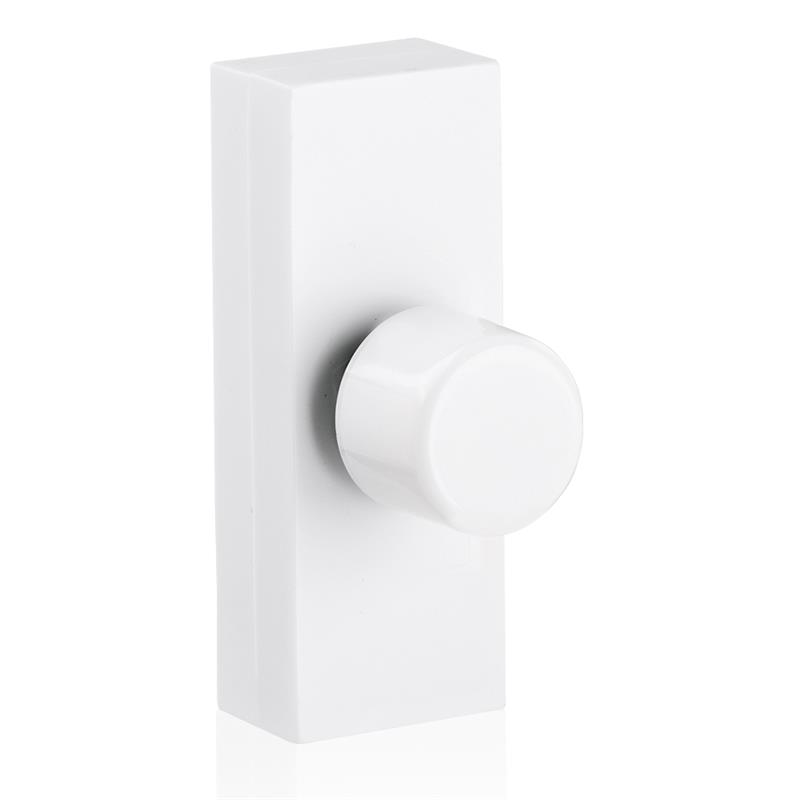

2-400W Universal Intelligent Dimmer

2-400W Universal intelligent dimmer

Spec Sheet


  • Intelligent universal dimmer modules that automatically detect if the load is leading or trailing edge and adjusts to suit
  • Suitable for controlling any capacitive, inductive or resistive dimmable load such as LED, halogen, CFL, fans
  • Integrated trimming potentiometer allows CFL and LED lamps to be set at a minimum level to prevent lamps flickering or extinguishing & maintain lamp life
  • Minimum load 2W, so suitable for small LED loads
  • Resettable thermal switch
  • Short-circuit protection
  • Module case ultrasonically sealed to reduce dimmer buzzing
  • Smooth dimming operation from 0-100% light output
  • Smaller than standard dimmer as no choke or transistors
  • May be fitted to most dimmer plates
  • One or two way switching
  • Electrical Safety - BS EN 60669-2-1:2004+A12:2010
  • EMC compliance - BS EN 55015:2006+A2:2009
  • De-rating for LED - 2/3 of load x load PF = max load on dimmer
  • De-rating for CFL - 1/3 of load x load PF = max load on dimmer
  • No de-rating for halogen loads

Width (mm)
26
Input Voltage (Min)
220
Input Voltage (Max)
240
Input Voltage Type
AC
Height (mm)
16
Length (mm)
66
Dimmable
Yes
