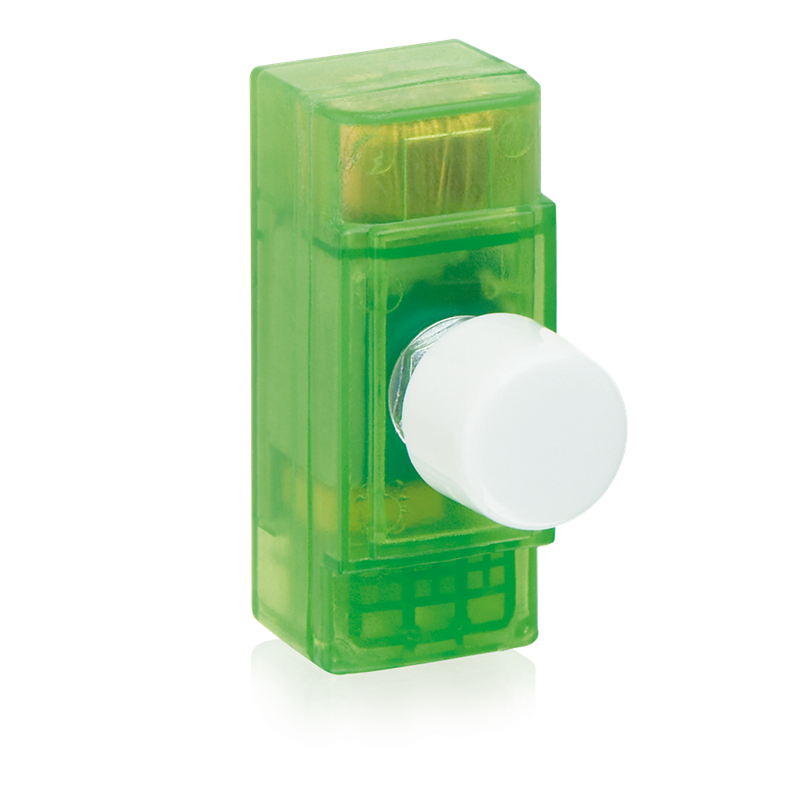

60-400W 1 Gang 2 Way Zero Cross Rotary Dimmer

1 Gang 2 Way Zero Cross Rotary Dimmer Module

Spec Sheet


  • Suitable for control of dimmable compact fluorescent and LED lamps, dimmable electronic transformers, LED drivers, toroidal transformers and tungsten lamps
  • Integrated trimming potentiometer allows CFL and LED lamps to be set at a minimum level to prevent them going out or flickering at the bottom of the dimmer range
  • Leading edge phase control
  • For use with resistive and inductive loads
  • Integrated over-temperature protection fuse
  • Module case ultrasonically sealed to reduce dimmer buzzing
  • Smooth dimming operation from 0-100% light output
  • May be fitted to most dimmer plates
  • One or two way switching
  • Derate Dimmer by 70% for LED loads
  • 1 year warranty
SKU Code
AU-DSP400X

Width (mm)
26
Input Voltage (Min)
220
Input Voltage (Max)
240
Input Voltage Type
AC
IP Rating
None
Height (mm)
25
Length (mm)
62
Dimmable
No
Positional Adjustment
Fixed
