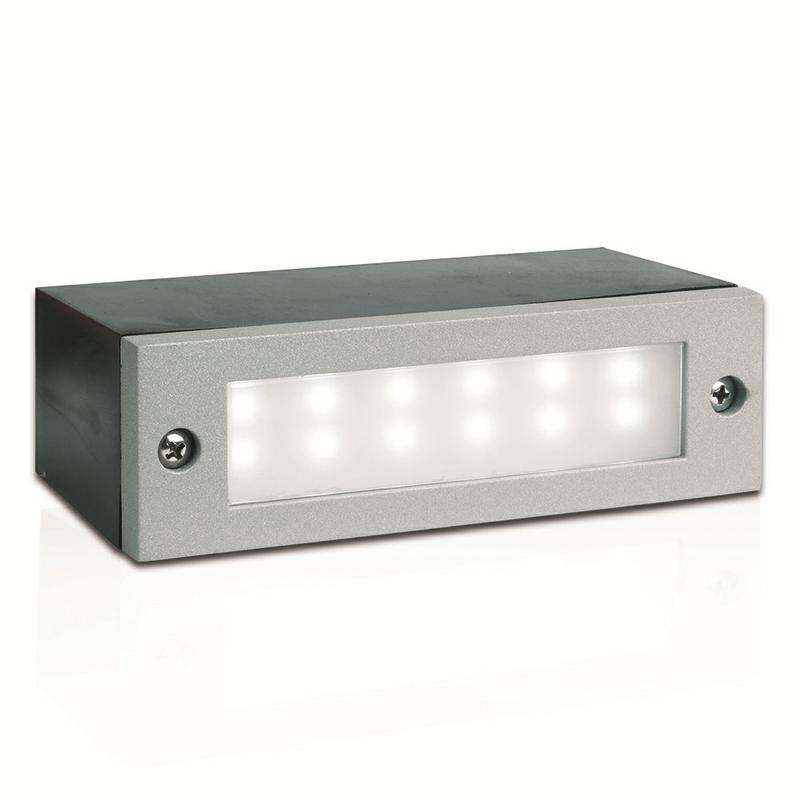

IP54 Rectangular Wall Light

Spec Sheet


  • IP54 Mains voltage LED brick light
  • Suitable for stair, corridor and low level lighting
  • Integrated LED driver - no separate driver required
  • Suitable for mounting in both dry lined & solid walls (Separate mounting sleeve supplied for solid wall mounting)
  • Satin silver finish
  • Non-dimmable
  • N.B Cut-out dimension refers to product when used with the plastic mounting sleeve (Without sleeve cut-out is 140mm x 40mm)

Width (mm)
145
Input Voltage (Min)
220
Input Voltage (Max)
250
Input Voltage Type
AC
IP Rating
IP54
Cutout Length (mm)
145
Cutout Width (mm)
45
Recess Depth (mm)
70
Height (mm)
145
Dimmable
No
