Bulkheads
Spec Sheet

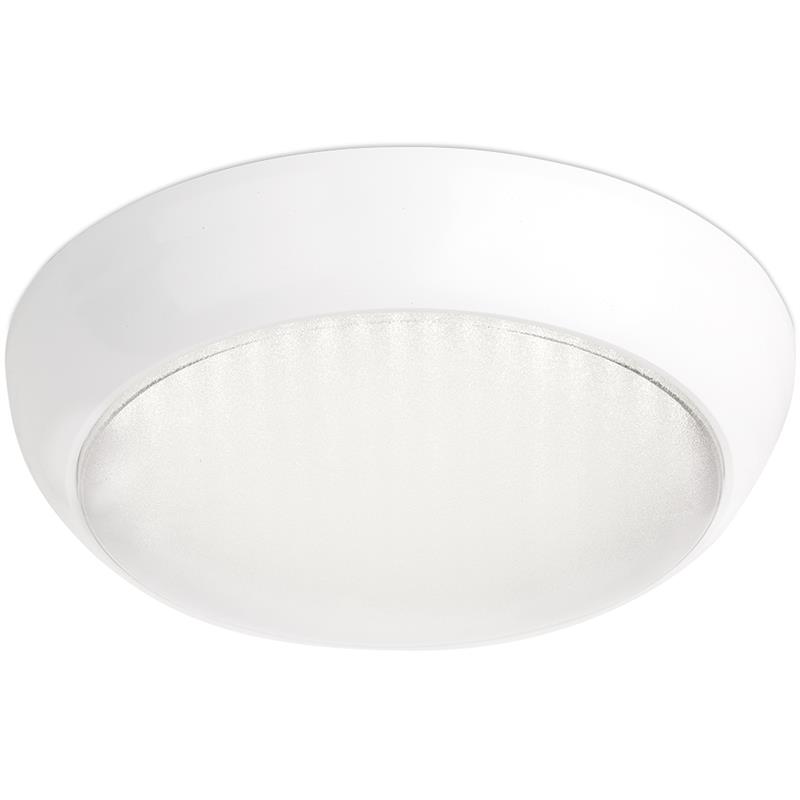

15W IP65 Bulkhead



Features & Benefits
IP65 Polycarbonate LED Bulkhead
3 Hour maintained emergency back-up option (AU-BH103AEM) and microwave sensor option ( AU-BH103AMS) available
5m detection range on microwave sensor
30 degrees - 150 degrees detection angle on microwave sensor
400W maximum load on microwave sensor
Microwave sensor uses 0.6W in standby mode, 1.2W in operation
Detection area on microwave sensor can be adjusted from 10%-100%
Hold time on microwave sensor can be adjusted from 5 seconds - 25 minutes
Daylight threshold on microwave sensor can be adjusted from 2 lux - 500 lux
Not affected by frequent switching e.g. when used with occupancy controls
Tough polycarbonate body for vandal resistance
Opal diffuser
Supplied with White and Polished Chrome trims
Wall or ceiling mounting
20mm conduit entries
Non-dimmable
(L70) at a 25,000 hour lifetime
3 Year Warranty - see www.auroralighting.com for details
Read More
Technical Information
Lifetime (Hours)
50000
IP Rating
IP65
Overall Diameter (mm)
326
Height (mm)
108
