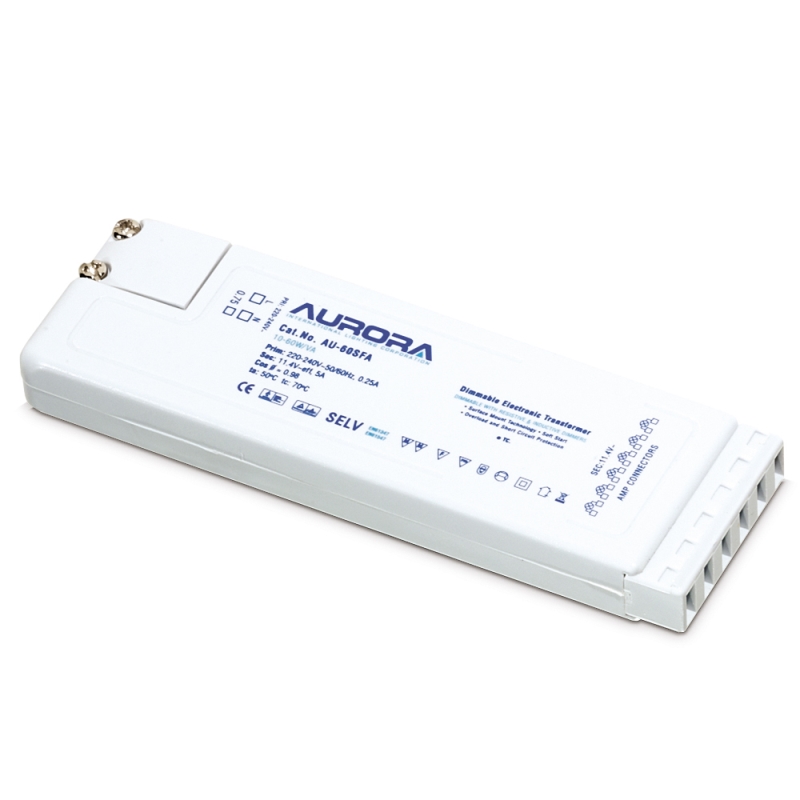

مقابس بمقطع صغير 10 - 60 وات/ ف أ - محول الكتروني بستة مخارج AMP

Spec Sheet


  • Fully dimmable with resistive & inductive dimmers
  • 15.5mm Ultra Low Profile suitable for furniture and cabinet applications where space is at a premium or concealment is required
  • 1.0kV SURGE PROTECTION – EN 61547
  • Secondary side - 6 output AMP sockets for quick connection and remote installation of furniture and cabinet lights - Use with AU-AMP1 for longer cable runs
  • Safety compliance – EN 61347
  • EMC compliance – EN 55015, EN 61000, EN 61547
  • NOTE: Max cable length from transformer to the furthest lamp is 2m
  • 5 Year Warranty - see www.auroralighting.com for details

Width (mm)
42
Input Voltage (Min)
220
Input Voltage (Max)
250
Input Voltage Type
AC
Height (mm)
16
Length (mm)
134
